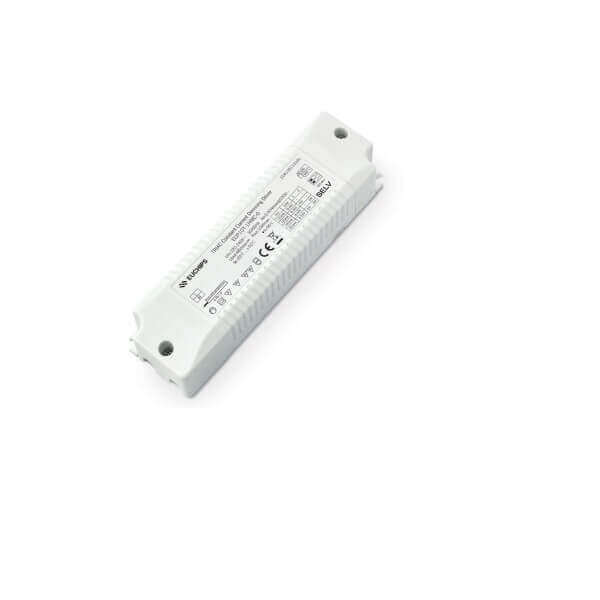

[CHINA] Euchips EUP 1HMC-0 Series TRIAC Constant Current Dimming Driver x10Pcs
[CHINA] Euchips EUP 1HMC-0 Series TRIAC Constant Current Dimming Driver x10Pcs
SKU:104100110101
Regular price
₱15,180.00 PHP
Regular price
₱15,180.00 PHP
Sale price
₱15,180.00 PHP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Technical Details
*Stock in China. Lead Time Two Weeks*
Description:
EUP10T-1HMC-0 is a constant current output mode LED driver. The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens, Dalitek etc.) to achieve a smooth dimming effect.
Product Code : 104100110101
Technical Parameter
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Dimming range from 40VAC to 240VAC
4. Built-in active PFC function
5. Class 2 power supply. Full protective plastic housing
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over temperature
8. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameter
EUP10T-1HMC-0
| Model | EUP10T-1HMC-0 | ||
| Input | Efficiency | 73%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC, Full load | ||
| THD | <20%@230VAC, Full load | ||
| Current | 0.07Amax@230VAC, Full load | ||
| Inrush Current | Cold start, 6A(twidth=30us measured at 50% Ipeak@230VAC | ||
| Output | Current/Voltage/Power | 120mA/9-40VDC/4.8W 180mA/9-40VDC/7.2W 240mA/9-40VDC/9.6W 300mA/9-33VDC/9.9W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No Load Output Voltage | 48V Max | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Over temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Short Circuit | Shut down the output automatically recovers after faulty condition is removed. | ||
| Over Load | When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced. | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.75kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H) | ||
| Dimension | 150*43*29mm(L*W*H) | ||
EUP12T-1HMC-0
| Model | EUP12T-1HMC-0 | ||
| Input | Efficiency | 76%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC, Full load | ||
| THD | <20%@230VAC, Full load | ||
| Current | 0.08Amax@230VAC, Full load | ||
| Inrush Current | Cold start, 6A(twidth=30us measured at 50% Ipeak@230VAC | ||
| Output | Current/Voltage/Power | 200mA/9-40VDC/8W 250mA/9-40VDC/10W 300mA/9-40VDC/12W 350mA/9-33VDC/11.9W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No Load Output Voltage | 48V Max | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Over temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Short Circuit | Shut down the output automatically recovers after faulty condition is removed. | ||
| Over Load | When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced. | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.75kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H) | ||
| Dimension | 150*43*29mm(L*W*H) | ||
EUP15T-1HMC-0
| Model | EUP15T-1HMC-0 | ||
| Input | Efficiency | 77%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC, Full load | ||
| THD | <20%@230VAC, Full load | ||
| Current | 0.1Amax@230VAC, Full load | ||
| Inrush Current | Cold start, 6A(twidth=30us measured at 50% Ipeak@230VAC | ||
| Output | Current/Voltage/Power | 350mA/9-40VDC/14W 400mA/9-37VDC/14.8W 450mA/9-33VDC/14.85W 500mA/9-30VDC/15W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No Load Output Voltage | 48V Max | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Over temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Short Circuit | Shut down the output automatically recovers after faulty condition is removed. | ||
| Over Load | When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced. | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.75kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H) | ||
| Dimension | 150*43*29mm(L*W*H) | ||
EUP20T-1HMC-0
| Model | EUP20T-1HMC-0 | ||
| Input | Efficiency | 81%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,full load | ||
| Current | 0.21Amax@230VAC, Full load | ||
| Inrush Current | Cold start, 15A(twidth=30us measured at 50% Ipeak@230VAC | ||
| Output | Current/Voltage/Power | 350mA/9-40VDC/14W 400mA/9-40VDC/16W 450mA/9-40VDC/18W 500mA/9-40VDC/20W 550mA/9-36VDC/19.8W 600mA/9-33VDC/19.8W 650mA/9-30VDC/19.5W 700mA/9-28VDC/19.6W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No Load Output Voltage | 48V Max | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Over temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Short Circuit | Shut down the output automatically recovers after faulty condition is removed. | ||
| Over Load | When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced. | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 130g±5%/PCS; 50PCS/Carton; 7kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H) | ||
| Dimension | 150*43*29mm(L*W*H) | ||
EUP30T-1HMC-0
| Model | EUP30T-1HMC-0 | ||
| Input | Efficiency | 82%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.9@230VAC, Full load | ||
| THD | <20%@230VAC, Full load | ||
| Current | 0.17Amax@230VAC, Full load | ||
| Inrush Current | Cold start, 15A(twidth=30us measured at 50% Ipeak@230VAC | ||
| Output | Current/Voltage/Power | 550mA/9-42VDC/23.1W 600mA/9-42VDC/25.2W 650mA/9-42VDC/27.3W 700mA/9-42VDC/29.4W 750mA/9-40VDC/30W 800mA/9-38VDC/30.4W 850mA/9-35VDC/29.75W 900mA/9-33VDC/29.7W |
|
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No Load Output Voltage | 50V Max | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Ripple Current | <3% | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Over temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Short Circuit | Shut down the output automatically recovers after faulty condition is removed. | ||
| Over Load | When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced. | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 75℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 150g±5%/PCS; 50PCS/Carton; 8kg±5%/Carton; Carton Size: 430*306*168mm(L*W*H) | ||
| Dimension | 185*42.5*28.5mm(L*W*H) | ||
EUP60T-1HMC-0
| Model | EUP60T-1HMC-0 | ||
| Input | Efficiency | 89%@230VAC, Full load | |
| Voltage | 200VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | >0.5@230VAC, Full load | ||
| Current | 0.6Amax@230VAC, Full load | ||
| Dimming voltage range | 40-240VAC | ||
| Inrush Current | 35A@230VAC | ||
| Output | Current/Voltage/Power | 900mA/9-66VDC/59.4W 1050mA/9-57VDC/59.85W 1200mA/9-50VDC/60W 1400mA/9-42VDC/58.8W |
|
| Ripple Current | 300mVp-p | ||
| Channel | 1 | ||
| Current Tolerance | ±5%(900mA Current Tolerance: ±7% ) | ||
| No Load Output Voltage | 85V Max | ||
| Turn On Delay Time | <1s, at 230Vac | ||
| Function | Dimming Mode | Triac | ELV |
| Protection | Short Circuit | Close output, recovers automatically after fault removed | |
| Others | Working Temp. | -20℃~40℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 90℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 30,000h@tc:75℃ | ||
| Warranty Condition | 3 years | ||
| Switch Cycle | >15,000 times | ||
| Packing Size | Net weight: 210g±5%/PCS; 50PCS/Carton; 11kg±5%/Carton; Carton Size: 516*337*179mm(L*W*H) | ||
| Dimension | 137*82*31mm(L*W*H) | ||
