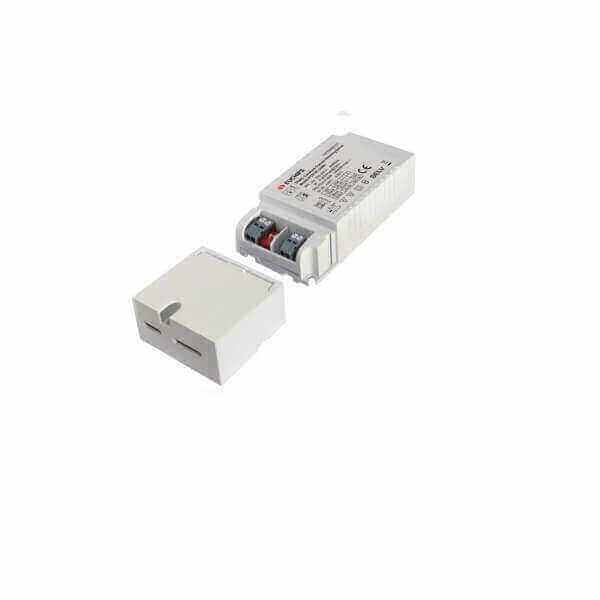

[CHINA] Euchips PCS 1HMC Series TRIAC Constant Current Dimming Driver x10Pcs

[CHINA] Euchips PCS 1HMC Series TRIAC Constant Current Dimming Driver x10Pcs

105100000101

₱11,000.00 PHP
₱11,000.00 PHP ₱11,000.00 PHP
Sale Sold out
Shipping calculated at checkout.
Request For Quote

Technical Details

Datasheet for PCS10T-1HMC

Datasheet for PCS15T-1HMC

*Stock in China. Lead Time Two Weeks*

Description:

PCS10T-1HMC is a constant voltage mode output LED driver. he output current can be easily set via DIP switch. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands to achieve a smooth dimming effect.

Technical Parameter

1. Single channel output, output current level selectable by DIP S.W.

2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer

3. Dimming range from 40VAC to 240VAC

4. Class 2 power supply. Full protective plastic housing

5. Dimming effect smooth, no flicker

6. Protections: Short circuit, over load, over temperature

7. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on

Technical Parameter

 PCS10T-1HMC

Model PCS10T-1HMC
Output Current 150mA 180mA 210mA
Voltage 25-45VDC 25-45VDC 25-45VDC
Power 6.75W 8.1W 9.45W
Current Accuracy ±5%
No load output voltage 60VDC
Output LF current ripple ＜8%
Input Voltage 220VAC-240VAC
Frequency 50/60Hz
Dimming Voltage Range 40-240VAC
Efficiency 76%@230VAC, Full Load
PF ＞0.9@230VAC, Full Load
THD ＜25%@230VAC, Full Load
Current 0.063Amax@230VAC, Full Load
Inrush current Cold start,15A(twidth=50us measured at 50% Ipeak)@230VAC
Function Dimming Mode Triac ELV
Protection Short circuit Hiccup mode, recovers automatically after fault condition is removed
Over Load Hiccup mode, recovers automatically after fault condition is removed
Others Dimension 118*50*25mm(L*W*H)/93*50*25mm(L*W*H)
G.W. 100g/90g
Ip Rating IP20
Working Temp -20℃ ~ 50℃
Tc 85℃
Relative Humidity 20~90% RH
Lifetime 50000h@tc max
Switch Cycle >100,000 times





PCS15T-1HMC

Model PCS15T-1HMC
Input Voltage 220VAC-240VAC
Frequency 50/60Hz
Dimming Voltage Range 40-240VAC
Efficiency 82%@230VAC, Full Load
PF ＞0.95@230VAC, Full Load
THD ＜20%@230VAC, Full Load
Current 0.10Amax@230VAC, Full Load
Inrush current Cold start,15A(twidth=50us measured at 50% Ipeak)@230VAC
Output Current/Voltage/Power 250mA/25-45VDC/11.25W 300mA/25-45VDC/13.5W 350mA/25-45VDC/15.75W
Current Accuracy ±5%
No load output voltage 60VDC
Output LF current ripple <8%
Protection Short circuit Hiccup mode, recovers automatically after fault condition is removed
Over current Hiccup mode, recovers automatically after fault condition is removed
Function Dimming mode Triac/ELV
Others Dimension 118*50*25mm(L*W*H)/93*50*25mm(L*W*H)
G.W 100g/90g
Ip Rating IP20
Working Temp -20℃ ~ 50℃
Tc 85℃
Relative Humidity 20~90% RH
Lifetime 50000h@tc max
Switch Cycle >100,000 times
