[CHINA] Euchips PUP20T-1LMC 20W 350~700mA Triac Constant Current Dimming Driver x10Pcs

[CHINA] Euchips PUP20T-1LMC 20W 350~700mA Triac Constant Current Dimming Driver x10Pcs

104100150101

₱22,000.00 PHP
₱22,000.00 PHP ₱22,000.00 PHP
Sale Sold out
Shipping calculated at checkout.
Request For Quote

Technical Details

Datasheet for  PUP20T-1LMC

*Stock in China. Lead Time Two Weeks*

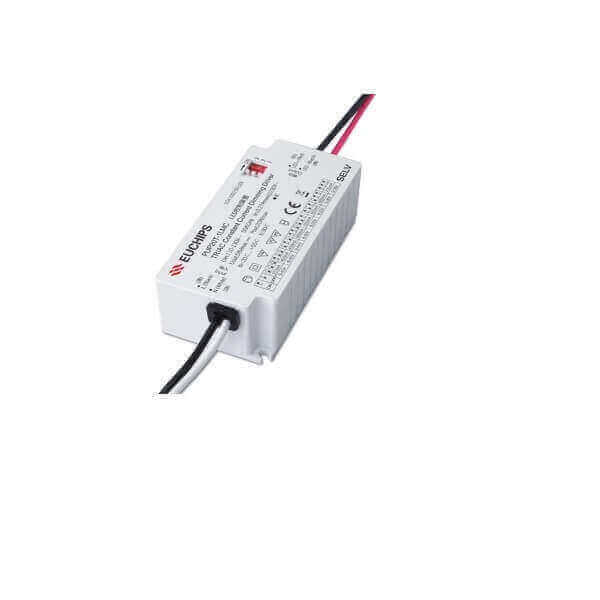

20W 350~700mA Phase-cut Constant Current Driver PUP20T-1LMC

PUP20T-1LMC is a constant current output mode LED driver.The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, achieve a smooth dimming effect.

Features

1. Single channel output, output current level selectable by DIP S.W.

2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer

3. Dimming Voltage 120VAC

4. Built-in active PFC function

5. Class 2 power supply. Full protective plastic housing

6. Dimming effect smooth, no flicker

7. Protections: Short circuit, over load, over voltage

8. Suitable for indoor LED lighting application,such as down light,spotlights,panel light,and so on

Technical Parameters

Model PUP20T-1LMC
Input Voltage 120VAC
Frequency 50/60Hz
Efficiency >81%@120VAC, Full load
PF ≥0.94@120VAC, Full load
THD(full load) <20%@120VAC, Full load
Current 0.3Amax@120VAC
Inrush Current Cold start,10A@120VAC
Standby Power <2.5W
Output Current/Voltage/Power

350mA/9-45V/15.75W
400mA/9-45V/18W
450mA/9-44V/19.8W
500mA/9-40V/20W
550mA/9-36V/19.8W
600mA/9-33V/19.8W
650mA/9-30.7V/20W
700mA/9-28.5V/20W
Channel 1
No load output voltage 58V Max
Frequency 2KHz Min PWM
Current Accuracy ±5%
LF current ripple(<120Hz) <3%
Protection Over Voltage Hiccup, recovers after fault condition is removed
Over load Hiccup, recovers after fault condition is removed
Short circuit Close output, recovers automatically after fault removed
Safety&
EMC		 Surge L-N:0.5KV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA
Safety standards UL8750/UL1310
EMC Eission FCC PART 18
EMC Immunity FCC class B(120V)
Others TRIAC TRIAC
Dimming range 3%-100%
Dimension 88*43*26.5mm(L*W*H)
Pack Information Net weight: 105g±5%/PCS; 50PCS/Carton; 5.75kg±5%/Carton; Carton Size: 234x222x194mm(L*W*H)
IP rating IP20
Working temp. -20℃~55℃
tc 90℃
Relative humidity 20~90% RH
Lifetime 50,000h@tc:70℃
Material PC
Switch cycle >25,000 times
