[CHINA] Euchips EUP10T-1HMC-0-120 10W 120~350mA TRIAC Constant Current Dimming Driver x10Pcs

[CHINA] Euchips EUP10T-1HMC-0-120 10W 120~350mA TRIAC Constant Current Dimming Driver x10Pcs

104100104201

₱12,100.00 PHP
₱12,100.00 PHP ₱12,100.00 PHP
Sale Sold out
Request For Quote

Technical Details

Datasheet for  EUP10T-1HMC-0-120

*Stock in China. Lead Time Two Weeks*

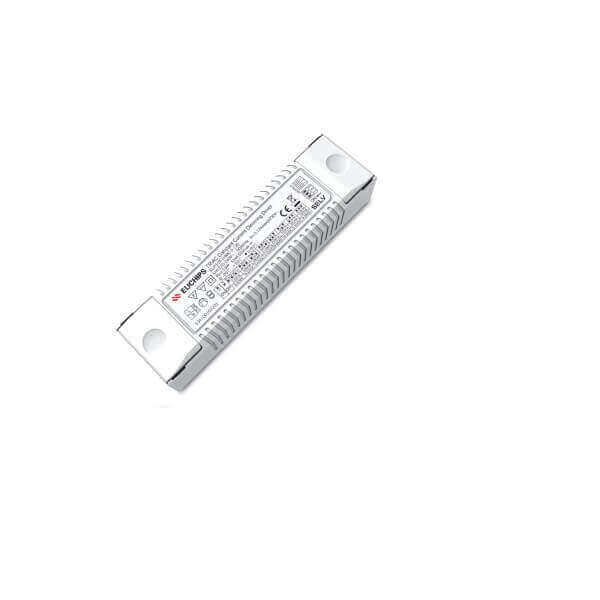

10W 120~350mA Phase-cut Constant Current LED Driver EUP10T-1HMC-0-120

EUP10T-1HMC-0-120 is a constant output mode LED driver. The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens,Dalitek etc.) to achieve a smooth dimming effect.

Product Code : 104100100201


1. Single channel output, output current level selectable by DIP S.W.Features

2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer

3. Dimming range from 40VAC to 240VAC

4. Class Ⅱ power supply. Full protective plastic housing

5. Dimming effect smooth, no flicker

6. Protections: Short circuit, over load

7. Suitable for indoor LED lighting application, such as down light, spot light, and so on

Technical Parameters

Model EUP10T-1HMC-0-120
Input Efficiency 75%@230VAC, Full load
Voltage 220VAC-240VAC
Frequency 50/60Hz
Current 0.12Amax@230VAC, Full load
Inrush Current Cold start, 28A(twidth=30us measured at 50% Ipeak@230VAC
Output Current/Voltage/Power 120mA/9-42VDC/5.04W
150mA/9-42VDC/6.3W
180mA/9-42VDC/7.56W
210mA/9-42VDC/8.82W
250mA/9-38VDC/9.88W
300mA/9-33VDC/9.86W
320mA/9-31VDC/9.92W
350mA/9-28DC/9.8W
Ripple Current <3%
Channel 1
Current Tolerance ±5%
No Load Output Voltage 50V Max
Turn On Delay Time <1s, at 230Vac
Function Dimming Mode Triac ELV
Protection Short Circuit Close output，recovers automatically after fault removed
Over Load When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced.
Others Working Temp. -20℃~50℃
Storage Temp.; Humidity -40℃~85℃, 20-90%RH
Tc 90℃
Material PC
IP Rating IP20
Lifetime 50,000h@tc:75℃
Warranty Condition 5 years
Switch Cycle >100,000 times
Packing(weight) Net weight: 90g±5%/PCS; 100PCS/Carton; 7kg±5%/Carton; Carton Size: 51.7*23.7*142cm(L*W*H)
Dimension 110*30*22mm(L*W*H)
