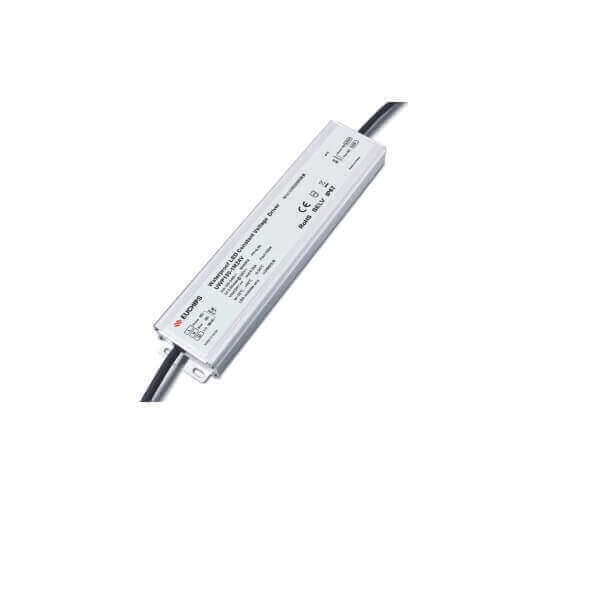

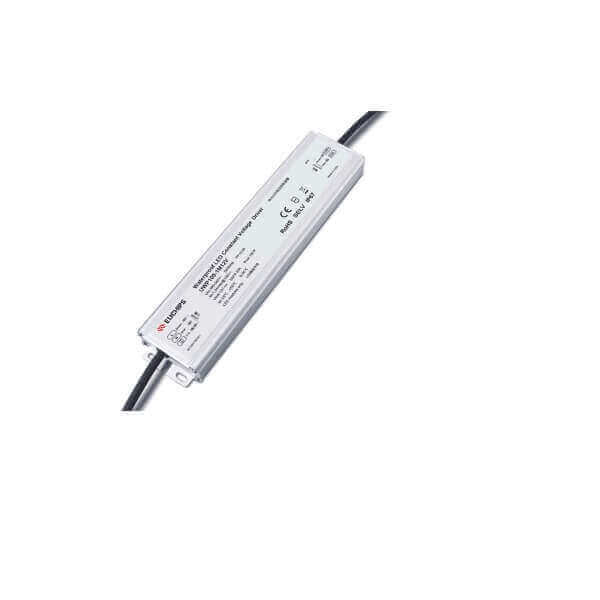

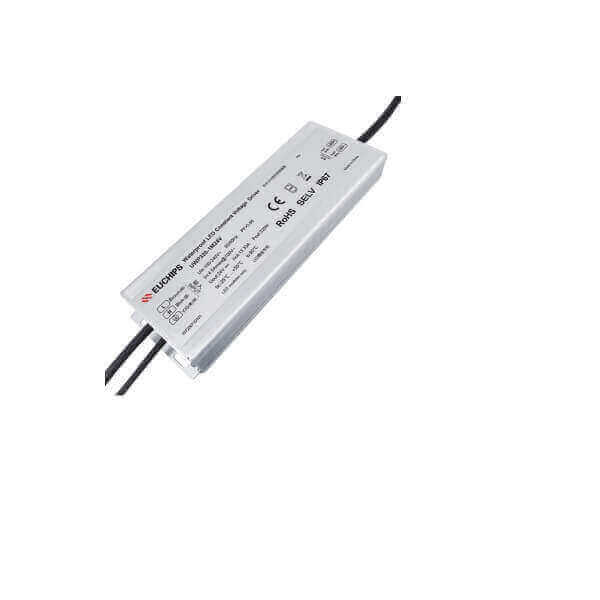

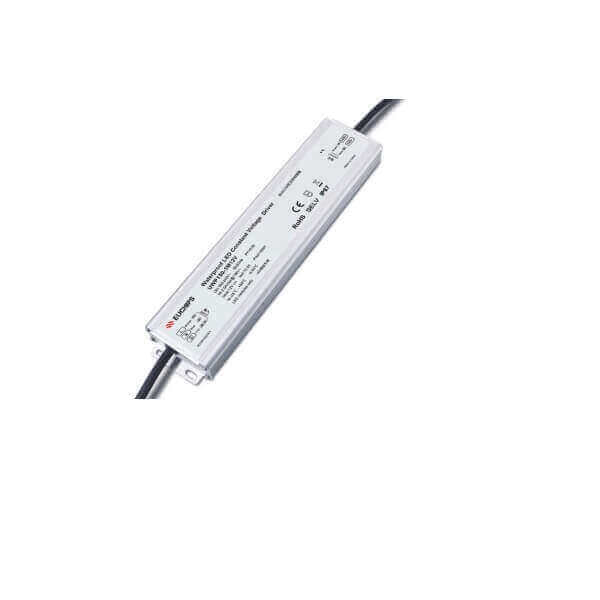

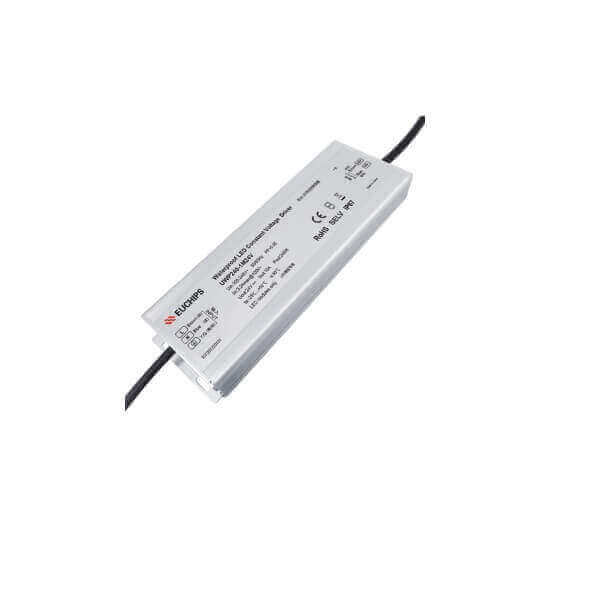

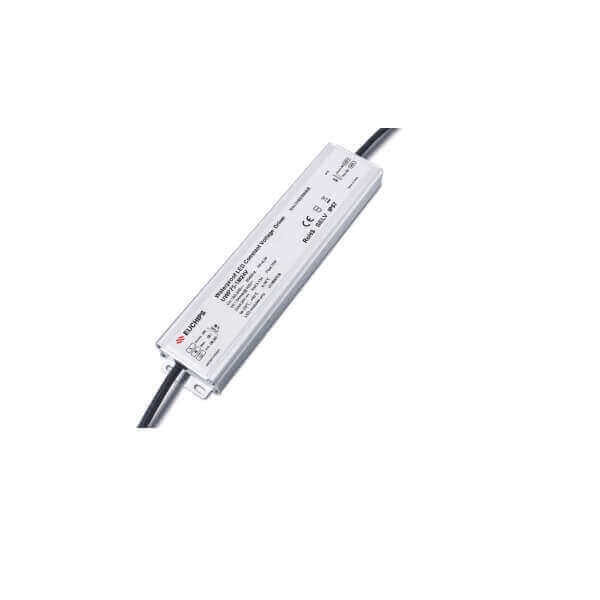

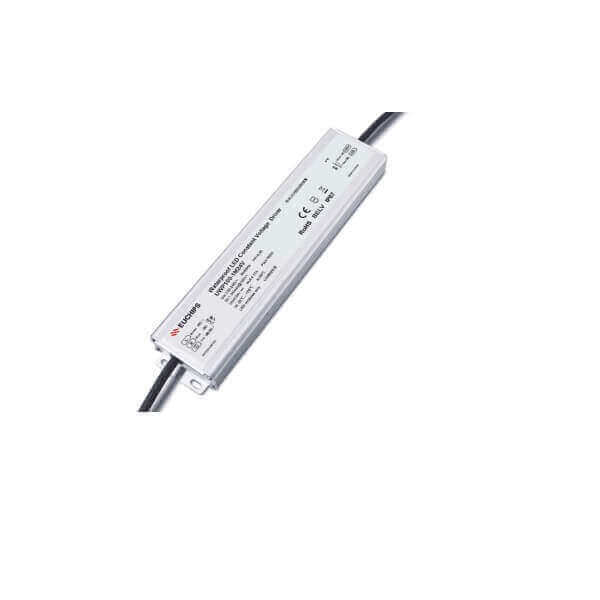

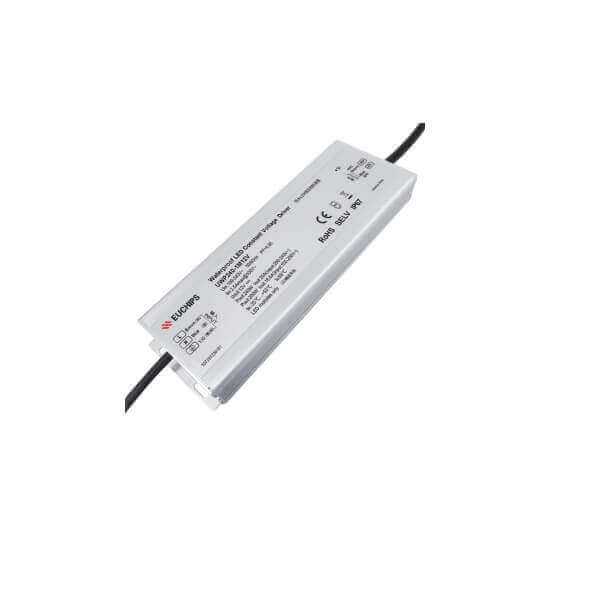

[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs
[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs
SKU:107201140101
Regular price
₱780.00 PHP
Regular price
Sale price
₱780.00 PHP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
***Ships from China - 2 to 3 weeks lead time***
Technical Details
Datasheet for UWP150-1M24V
Datasheet for UWP150-1M48V
Datasheet for UWP240-1M12V
Datasheet for UWP240-1M24V
Datasheet for UWP320-1M24V
*Stock in China. Lead Time Two Weeks*
Features
1. Wide input voltage with active PFC, full loading output
2. Ultra-thin design, install space
3. Adapt to the harsh working environment
4. Isolated design, safe and reliable
5. Protections: overload, over temperature short circuit, lightning protection etc.
6. Conformed with CE/CB/CCC/SELV certification.
7. ·The typical efficiency up to 88%
8. Protect level IP67
9. Warranty 5 years
Technical Parameter:
UWP40-1M12V
| Model | UWP40-1M12V | |
| Input | Efficiency | 84%@220VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 50/60Hz | |
| Power Factor | >0.95 | |
| Current | 0.6Amax@220VAC | |
| THD | <10%@230VAC, Full Load | |
| Inrush Current | Cold start <50A @240VAC(full load) | |
| Output | Current/Voltage/Power | 3.34A/12VDC/40W |
| Ripple Current | <120mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±4% | |
| Protections | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <18VDC Shut down the output, After restart recovers automatically | |
| Over Current | <4.8A auto recovery when failure is removed | |
| Safety&EMC | Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltag | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Others | Working temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@ta:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >100,000 times | |
| Packing Size | Net weight: 340g±5%/PCS; 50PCS/Carton; 17.5kg±5%/Carton; Carton Size: 500*250*140mm(L*W*H) | |
| Dimension | 234*36.5*22mm(L*W*H) | |
UWP40-1M24V
| Model | UWP40-1M24V | |
| Input | Efficiency | 87%@220VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 50/60Hz | |
| Power Factor | >0.95 | |
| Current | 0.6Amax@220VAC | |
| THD | <10%@230VAC, Full Load | |
| Inrush Current | Cold start <50A @240VAC(full load) | |
| Output | Current/Voltage/Power | 1.67A/24VDC/40W |
| Ripple Current | <120mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±2% | |
| Protections | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <36VDC Shut down the output, After restart recovers automatically | |
| Over Current | <2.5A auto recovery when failure is removed | |
| Safety&EMC | Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltag | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Others | Working temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@ta:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 340g±5%/PCS; 50PCS/Carton; 17.5kg±5%/Carton; Carton Size: 500*250*140mm(L*W*H) | |
| Dimension | 234*36.5*22mm(L*W*H) | |
UWP75-1M12V
Model |
UWP75-1M12V |
|
Input |
Efficiency |
88%@220VAC, Full load |
Voltage |
100VAC-240VAC |
|
Frequency |
47~63Hz |
|
Power Factor |
>0.95 |
|
Current |
0.6Amax@220VAC |
|
THD |
<10%@230VAC, Full Load |
|
Inrush Current |
Cold start <50A @240VAC(full load) |
|
Output |
Current/Voltage/Power |
6.25A/12VDC/75W |
Ripple Current |
<120mVp-p |
|
Channel |
1 |
|
Voltage Tolerance |
±4% |
|
Protections |
Short Circuit |
Auto recovery when failure is removed |
Over Voltage |
<18VDC Shut down the output, After restart recovers automatically |
|
Over Current |
<8A auto recovery when failure is removed |
|
Safety&EMC |
Surge |
L-N:2kV,L,N-FG:4kV |
Withstand Voltag |
I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA |
|
Safety Standards |
IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 |
|
EMC Eission |
EN50515,EN61000-3-2 Class C,IEC61000-3-3 |
|
EMC Immunity |
EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 |
|
Others |
Working temp. |
-25℃~+50℃ |
Storage Temp.; Humidity |
-40℃~85℃, 20-90%RH |
|
Tc |
90℃ |
|
Material |
Metal |
|
IP Rating |
IP67 |
|
Lifetime |
50,000h@ta:85℃ |
|
Warranty Condition |
5 years |
|
Switch Cycle |
>25,000 times |
|
Packing Size |
Net weight: 820g±5%/PCS; 20PCS/Carton; 17kg±5%/Carton; Carton Size: 325*315*195mm (L*W*H) |
|
Dimension |
270*61*25mm(L*W*H) |
|
UWP75-1M24V
| Model | UWP75-1M24V | |
| Input | Efficiency | 89%@220VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 47~63Hz | |
| Power Factor | >0.95 | |
| Current | 1Amax@240VAC， Full Load | |
| THD | <10%@230VAC, Full Load | |
| Inrush Current | Cold start <50A @240VAC(full load) | |
| Output | Current/Voltage/Power | 3.13A/24VDC/75W |
| Ripple Current | <120mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±2% | |
| Protections | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <36VDC Shut down the output, After restart recovers automatically | |
| Over Current | <4A auto recovery when failure is removed | |
| Safety&EMC | Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltag | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Others | Working temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@ta:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 820g±5%/PCS; 20PCS/Carton; 17kg±5%/Carton; Carton Size: 325*315*195mm (L*W*H) | |
| Dimension | 270*61*25mm(L*W*H) | |
UWP100-1M12V
| Model | UWP100-1M12V | |
| Input | Efficiency | 88%@220VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 47~63Hz | |
| Power Factor | >0.95 | |
| Current | 1.3Amax@240VAC, Full load | |
| THD | <10%@230VAC, Full Load | |
| Inrush Current | Cold start <50A @240VAC(full load) | |
| Output | Current/Voltage/Power | 8.34A/12VDC/100W |
| Ripple Current | <120mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±4% | |
| Protections | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <18VDC Shut down the output, After restart recovers automatically | |
| Over Current | <10A auto recovery when failure is removed | |
| Safety&EMC | Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltag | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Others | Working temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@ta:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 820g±5%/PCS; 20PCS/Carton; 17kg±5%/Carton; Carton Size: 325*315*195mm (L*W*H) | |
| Dimension | 270*61*25mm(L*W*H) | |
UWP100-1M24V
| Model | UWP100-1M24V | |
| Input | Efficiency | 88%@220VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 47~63Hz | |
| Power Factor | >0.95 | |
| Current | 1.3Amax@240VAC, Full load | |
| THD | <10%@230VAC, Full Load | |
| Inrush Current | Cold start <50A @240VAC(full load) | |
| Output | Current/Voltage/Power | 4.17A/24VDC/100W |
| Ripple Current | <120mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±2% | |
| Protections | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <36VDC Shut down the output, After restart recovers automatically | |
| Over Current | <5.5A auto recovery when failure is removed | |
| Safety&EMC | Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltag | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Others | Working temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@ta:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 820g±5%/PCS; 20PCS/Carton; 17kg±5%/Carton; Carton Size: 325*315*195mm (L*W*H) | |
| Dimension | 270*61*25mm(L*W*H) | |
UWP150-1M12V
| Model | UWP150-1M12V | |
| Input | Efficiency | 89%@220VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 47~63Hz | |
| Power Factor | >0.95 | |
| Current | 2Amax@100VAC 3.2A max@240VAC | |
| THD | <10%@230VAC, Full Load | |
| Inrush Current | Cold start <50A @230VAC(full load) | |
| Output | Current/Voltage/Power | 12.5A/12VDC/150W |
| Ripple Current | <120mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±4% | |
| Protections | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <18VDC Shut down the output, After restart recovers automatically | |
| Over Current | <16A auto recovery when failure is removed | |
| Safety&EMC | Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltag | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Others | Working temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@ta:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 820g±5%/PCS; 20PCS/Carton; 17kg±5%/Carton; Carton Size: 325*315*195mm (L*W*H) | |
| Dimension | 270*61*25mm(L*W*H) | |
UWP150-1M24V
| Model | UWP150-1M24V | |
| Input | Efficiency | 89%@220VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 47~63Hz | |
| Power Factor | >0.95 | |
| Current | 2Amax@100VAC 3.2A max@240VAC | |
| THD | <10%@230VAC, Full Load | |
| Inrush Current | Cold start <50A @230VAC(full load) | |
| Output | Current/Voltage/Power | 6.25A/24VDC/150W |
| Ripple Current | <120mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±2% | |
| Protections | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <36VDC Shut down the output, After restart recovers automatically | |
| Over Current | <8.1A auto recovery when failure is removed | |
| Safety&EMC | Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltag | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Others | Working temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@ta:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 820g±5%/PCS; 20PCS/Carton; 17kg±5%/Carton; Carton Size: 325*315*195mm (L*W*H) | |
| Dimension | 270*61*25mm(L*W*H) | |
UWP150-1M48V
| Model | UWP150-1M48V | |
| Input | Efficiency | 89%@220VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 50/60Hz | |
| Power Factor | >0.95 | |
| Current | 2Amax@100VAC 3.2A max@240VAC | |
| THD | <10%@230VAC, Full Load | |
| Inrush Current | Cold start <50A @230VAC(full load) | |
| Output | Current/Voltage/Power | 3.13A/48VDC/150W |
| Ripple Current | <240mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±2% | |
| Protections | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <62.4VDC Shut down the output, After restart recovers automatically | |
| Over Current | <4A auto recovery when failure is removed | |
| Safety&EMC | Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltag | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Others | Working temp. | -25℃~+60℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@ta:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >100,000 times | |
| Packing Size | Net weight: 820g±5%/PCS; 20PCS/Carton; 17kg±5%/Carton; Carton Size: 325*315*195mm (L*W*H) | |
| Dimension | 270*61*25mm(L*W*H) | |
UWP240-1M12V
| Model | UWP240-1M12V | |
| Input | Efficiency | 90%@220VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 47~63Hz | |
| Power Factor | >0.95 | |
| Current | 2.7Amax@100VAC 3.2A max@240VAC | |
| THD | <10%@230VAC, Full Load | |
| Inrush Current | Cold start <50A @230VAC(full load) | |
| Output | Current/Voltage/Power | 16.6A(Input:100-200V), 20A(Input:200-240V )/12VDC/200W(Input:100-200V), 240W(Input:200-240V) |
| Ripple Current | <240mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±4% | |
| Protections | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <18VDC Shut down the output, After restart recovers automatically | |
| Over Current | <26A auto recovery when failure is removed | |
| Safety&EMC | Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltag | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Others | Working temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@ta:90℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 1055g±5%/PCS; 20PCS/Carton; 26.1kg±5%/Carton; Carton Size: 355*290*180mm (L*W*H) | |
| Dimension | 270*68*30mm(L*W*H) | |
UWP240-1M24V
| Model | UWP240-1M24V | |
| Input | Efficiency | 93.5%@220VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 47~63Hz | |
| Power Factor | >0.95 | |
| Current | 3.2Amax@230VAC | |
| THD | <10%@230VAC, Full Load | |
| Inrush Current | Cold start <50A @230VAC(full load) | |
| Output | Current/Voltage/Power | 10A/24VDC/240W |
| Ripple Current | <240mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Protections | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <28VDC Shut down the output, After restart recovers automatically | |
| Over Current | <13A auto recovery when failure is removed | |
| Safety&EMC | Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltag | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Others | Working temp. | -25℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@ta:90℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 1055g±5%/PCS; 20PCS/Carton; 26.1kg±5%/Carton; Carton Size: 355*290*180mm (L*W*H) | |
| Dimension | 270*68*30mm(L*W*H) | |
UWP320-1M24V
| Model | UWP320-1M24V | |
| Input | Efficiency | 91%@230VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 47~63Hz | |
| Power Factor | >0.95 | |
| Current | 4.0Amax@230VAC | |
| THD | <10%@230VAC, Full Load | |
| Inrush Current | Cold start <50A @230VAC(full load) | |
| Output | Current/Voltage/Power | 13.3A/24VDC/320W |
| Ripple Current | <240mVp-p | |
| Channel | 1 | |
| Voltage Tolerance | ±2% | |
| Protections | Short Circuit | Auto recovery when failure is removed |
| Over Voltage | <35VDC Shut down the output, After restart recovers automatically | |
| Over Current | <19.9A auto recovery when failure is removed | |
| Safety&EMC | Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltag | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
| Others | Working temp. | -25℃~+60℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@ta:90℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >100,000 times | |
| Packing Size | Net weight: 1700g±5%/PCS; 10PCS/Carton; 17kg±5%/Carton; Carton Size: 315*260*210mm(L*W*H) | |
| Dimension | 290*90*32mm(L*W*H) | |
Share
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UWP75-1M12V_1_1_1_1.jpg?v=1710440698&width=1445)
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UWP75-1M24V_1_1_1_1.jpg?v=1710440698&width=1445)
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UWP100-1M12V_1_1_1_1.jpg?v=1710440698&width=1445)
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UWP100-1M24V_1_1_1_1.jpg?v=1710440698&width=1445)
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UWP150-1M12V_1_1_1_1.jpg?v=1710440698&width=1445)
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UWP150-1M24_1_1_1_1.jpg?v=1710440698&width=1445)
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/150-1M48V_1_1_1_1.jpg?v=1710440698&width=1445)
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UWP240-1M12V_1_1_1.jpg?v=1710440698&width=1445)
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UWP240-1M24V_1_1_1_1.jpg?v=1710440698&width=1445)
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UWP320-1M24V_1_1_1_1_1.jpg?v=1710440698&width=1445)
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UWP320-1M24V-1.jpg?v=1710440698&width=1445)
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UWP40-1M12V.jpg?v=1710440699&width=1445)
![[CHINA] Euchips UWP Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UWP40-1M24V.jpg?v=1710440699&width=1445)
