[CHINA] Euchips UCS Series Non-dimmable Constant Voltage LED Driver x10Pcs
[CHINA] Euchips UCS Series Non-dimmable Constant Voltage LED Driver x10Pcs
SKU:107200600101
Regular price
₱365.00 PHP
Regular price
Sale price
₱365.00 PHP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Technical Details
*Stock in China. Lead Time Two Weeks*
Product Code: 107200340101
1. A channel constant voltage output MaxFeatures
2. Applicable to indoor LED lights
3. Small size, high efficiency, high reliability and long life time
4. -25℃~+50℃, working temp
5. Protections: overload, overvoltage, short circuit self-recovery protection
6. Compliance with CE and ROHS
7. 100% Full load aging test
8. The warranty period is 5 years
Technical Parameter

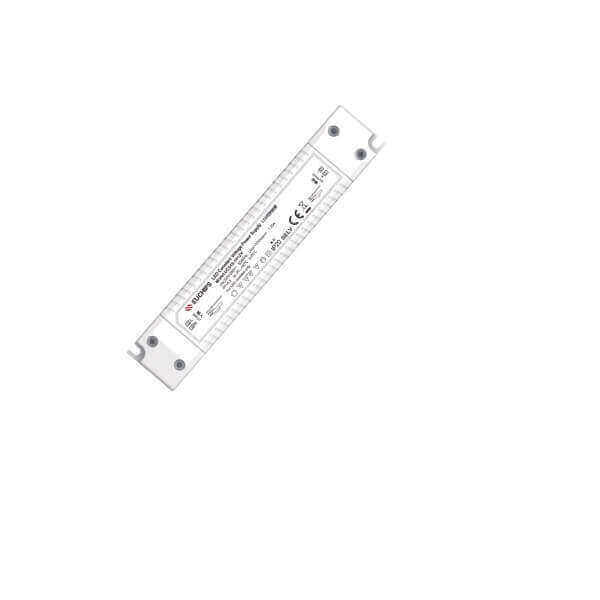

UCS15-1H12V-0
| Model | UCS15-1H12V | |
| Input | Efficiency | 83%@220VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.92 | |
| Current | 0.2Amax@220VAC | |
| THD | <15% (at 220V, 50Hz, full load) | |
| Inrush Current | Cold start <60A @200VAC(full load) | |
| Output | Current/Voltage/Power | 1.25A/12VDC/15W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Protections | Short Circuit | Hiccup, remove fault and recover |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Current | Hiccup, remove fault and recover | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 70g±5%/PCS; 100PCS/Carton; 7.5kg±5%/Carton; Carton Size: 365*228*199mm(L*W*H) | |
| Dimension | 160*30*17mm(L*W*H) | |

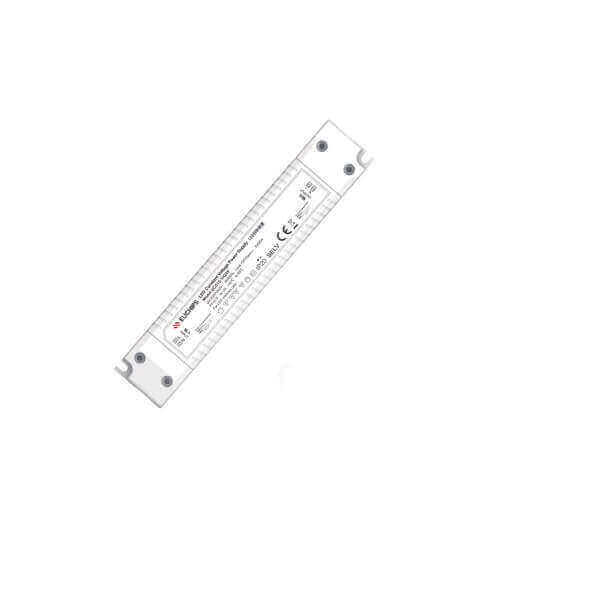

UCS15-1H24V-0
| Model | UCS15-1H24V | |
| Input | Efficiency | 87%@220VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.92 | |
| Current | 0.2Amax@220VAC | |
| THD | <15% (at 220V, 50Hz, full load) | |
| Inrush Current | Cold start <60A @200VAC(full load) | |
| Output | Current/Voltage/Power | 0.625A/24VDC/15W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Protections | Short Circuit | Hiccup, remove fault and recover |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Current | Hiccup, remove fault and recover | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 70g±5%/PCS; 100PCS/Carton; 7.5kg±5%/Carton; Carton Size: 365*228*199mm(L*W*H) | |
| Dimension | 160*30*17mm(L*W*H) | |

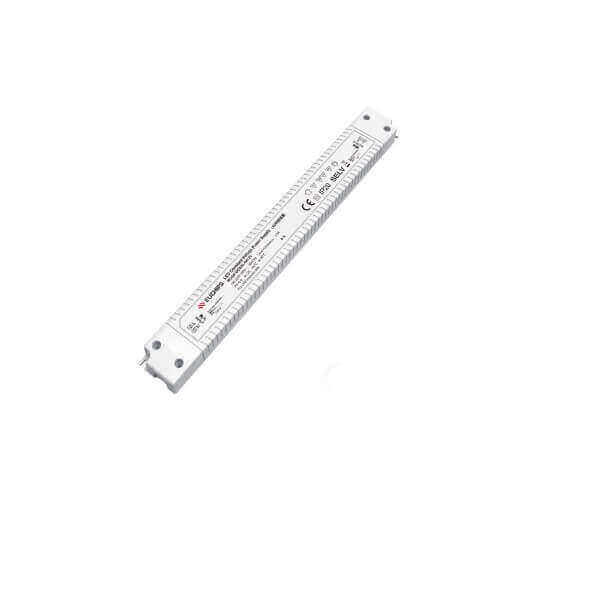

UCS30-1H12V-0
| Model | UCS30-1H12V | |
| Input | Efficiency | 83%@220VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.95 | |
| Current | 0.2Amax@220VAC | |
| THD | <15% (at 220V, 50Hz, full load) | |
| Inrush Current | Cold start <60A @200VAC(full load) | |
| Output | Current/Voltage/Power | 2.5A/12VDC/30W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Protections | Short Circuit | Hiccup, remove fault and recover |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Current | Hiccup, remove fault and recover | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 115g±5%/PCS; 50PCS/Carton; 6.25kg±5%/Carton; Carton Size: 365*228*199mm(L*W*H) | |
| Dimension | 250*30*17mm(L*W*H) | |
UCS30-1H24V
| Model | UCS30-1H24V | |
| Input | Efficiency | 86%@220VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.95 | |
| Current | 0.2Amax@220VAC | |
| THD | <15% (at 220V, 50Hz, full load) | |
| Inrush Current | Cold start <60A @200VAC(full load) | |
| Output | Current/Voltage/Power | 1.25A/24VDC/30W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Protections | Short Circuit | Hiccup, remove fault and recover |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Current | Hiccup, remove fault and recover | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 115g±5%/PCS; 50PCS/Carton; 6.25kg±5%/Carton; Carton Size: 365*228*199mm(L*W*H) | |
| Dimension | 250*30*17mm(L*W*H) | |

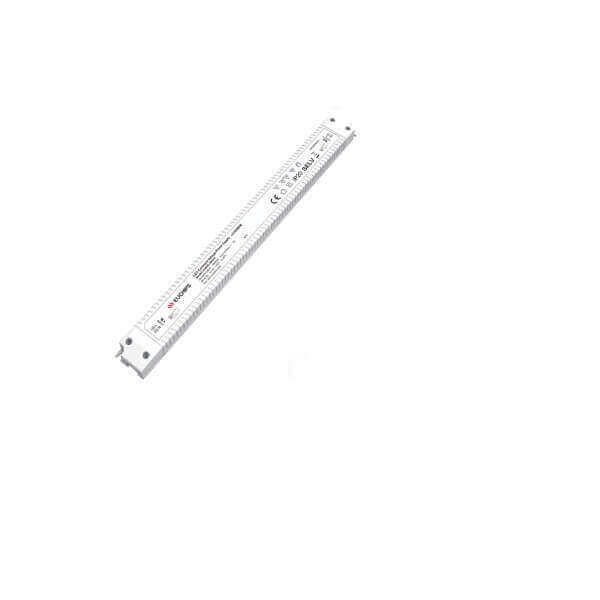

UCS60-1H12V-0
| Model | UCS60-1H12V | |
| Input | Efficiency | 90%@220VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.95 | |
| Current | 0.35Amax@220VAC | |
| THD | <15% (at 220V, 50Hz, full load) | |
| Inrush Current | Cold start <60A @200VAC(full load) | |
| Output | Current/Voltage/Power | 5A/12VDC/60W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Protections | Short Circuit | Hiccup, remove fault and recover |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Current | Hiccup, remove fault and recover | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 160g±5%/PCS; 50PCS/Carton; 8.5kg±5%/Carton; Carton Size: 435*346*100mm(L*W*H) | |
| Dimension | 312*30*18mm(L*W*H) | |
UCS60-1H24V
| Model | UCS60-1H24V | |
| Input | Efficiency | 91%@220VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.95 | |
| Current | 0.35Amax@220VAC | |
| THD | <15% (at 220V, 50Hz, full load) | |
| Inrush Current | Cold start <60A @200VAC(full load) | |
| Output | Current/Voltage/Power | 2.5A/24VDC/60W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Protections | Short Circuit | Hiccup, remove fault and recover |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Current | Hiccup, remove fault and recover | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 160g±5%/PCS; 50PCS/Carton; 8.5kg±5%/Carton; Carton Size: 435*346*100mm(L*W*H) | |
| Dimension | 312*30*18mm(L*W*H) | |

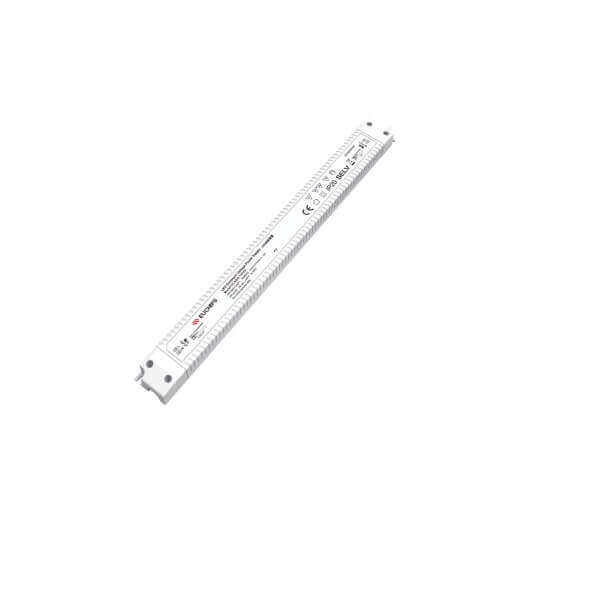

UCS100-1H12V
| Model | UCS100-1H12V | |
| Input | Efficiency | 91%@220VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.95 | |
| Current | 0.6Amax@220VAC | |
| THD | <15% (at 220V, 50Hz, full load) | |
| Inrush Current | Cold start <60A @200VAC(full load) | |
| Output | Current/Voltage/Power | 8A/12VDC/100W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Protections | Short Circuit | Hiccup, remove fault and recover |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Current | Hiccup, remove fault and recover | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 170g±5%/PCS; 50PCS/Carton; 9kg±5%/Carton; Carton Size: 435*346*100mm(L*W*H) | |
| Dimension | 312*30*18mm(L*W*H) | |
UCS100-1H24V
| Model | UCS100-1H24V | |
| Input | Efficiency | 92%@220VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.95 | |
| Current | 0.6Amax@220VAC | |
| THD | <15% (at 220V, 50Hz, full load) | |
| Inrush Current | Cold start <60A @200VAC(full load) | |
| Output | Current/Voltage/Power | 4.16A/24VDC/100W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Protections | Short Circuit | Hiccup, remove fault and recover |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Current | Hiccup, remove fault and recover | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 170g±5%/PCS; 50PCS/Carton; 9kg±5%/Carton; Carton Size: 435*346*100mm(L*W*H) | |
| Dimension | 312*30*18mm(L*W*H) | |

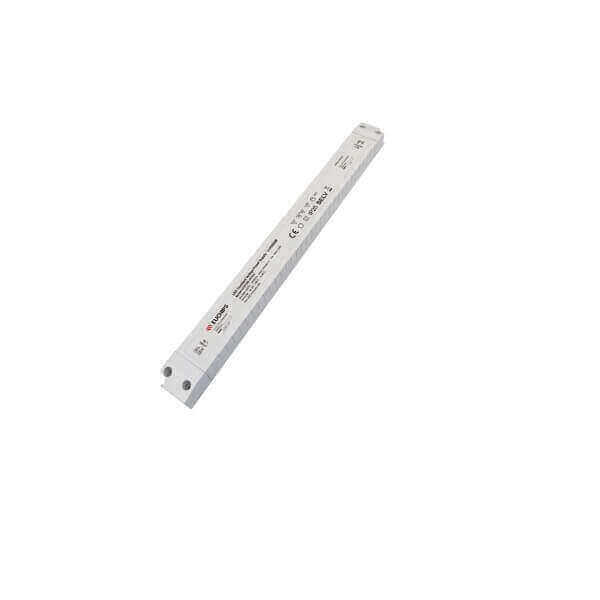

UCS150-1H12V
| Model | UCS150-1H12V | |
| Input | Efficiency | >90%@230VAC, full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | ≥0.98@230VAC, full load | |
| Current | 0.75A max@230VAC | |
| THD | <10%@230VAC, full load | |
| Inrush Current | Cold start, 60A @230VAC | |
| Standby power | <1W | |
| Output | Current/Voltage/Power | 12.5A/12VDC/150W |
| Channel | 1 | |
| Voltage Tolerance | ±3% | |
| No load output voltage | 12V | |
| Turn on delay Time | <0.5s, at230Vac (When the light begins to shine) | |
| Protections | Short Circuit | After fault removed Close output ,the output current recovers automatically |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically | |
| Safety & EMC | Surge | L-N:2.5KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: --g±5%/PCS; --PCS/Carton; 9kg±5%/Carton; Carton Size: --mm(L*W*H) | |
| Dimension | 323*30.5*22mm(L*W*H) | |
UCS150-1H24V
| Model | UCS150-1H24V | |
| Input | Efficiency | >92%@220VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | ≥0.98@230VAC, full load | |
| Current | 0.8Amax@220VAC | |
| THD | <10% (at 220V, 50Hz, full load) | |
| Inrush Current | Cold start 60A @230VAC | |
| Output | Current/Voltage/Power | 6.25A/24VDC/150W |
| Channel | 1 | |
| Voltage Tolerance | ±3% | |
| No load output voltage | 24V | |
| Turn on delay Time | <0.5s, at230Vac (When the light begins to shine) | |
| Protections | Short Circuit | After fault removed Close output ,the output current recovers automatically |
| Over Voltage | Hiccup, recovers after fault condition is removed | |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically | |
| Safety & EMC | Surge | L-N:2.5KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:70℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | --g±5%/PCS; --PCS/Carton; 9kg±5%/Carton; Carton Size: --mm(L*W*H) | |
| Dimension | 323*30.5*22mm(L*W*H) | |
Share
![[CHINA] Euchips UCS Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UCS15-1H12V-0_1_1_1_1_1.jpg?v=1710440717&width=1445)
![[CHINA] Euchips UCS Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UCS15-1H24V_1_1_1_1_1.jpg?v=1710440717&width=1445)
![[CHINA] Euchips UCS Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UCS30-1H12V_1_1_1_1_1.jpg?v=1710440717&width=1445)
![[CHINA] Euchips UCS Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UCS60-1H12V_1_1_1_1.jpg?v=1710440717&width=1445)
![[CHINA] Euchips UCS Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UCS100-1H12V_1_1_1_1.jpg?v=1710440717&width=1445)
![[CHINA] Euchips UCS Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UCS150-1H12V_1_1_1_1_1.jpg?v=1710440717&width=1445)
![[CHINA] Euchips UCS Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UCS150-1H24V.jpg?v=1710440717&width=1445)
![[CHINA] Euchips UCS Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UCS150-1H12V-1.jpg?v=1710440717&width=1445)
![[CHINA] Euchips UCS Series Non-dimmable Constant Voltage LED Driver x10Pcs-Ballast /Drivers-DELIGHT OptoElectronics Pte. Ltd](http://delight.com.ph/cdn/shop/products/UCS100-1H24V.jpg?v=1710440717&width=1445)
