CST CS-864 Medium-Intensity Aviation Obstruction Light
CST CS-864 Medium-Intensity Aviation Obstruction Light
SKU:CS-864/B
Regular price
₱57,816.00 PHP
Regular price
₱61,864.00 PHP
Sale price
₱57,816.00 PHP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Technical Details
*Check stock before ordering. Lead time 4-5 weeks*
CS-864/B
Water Resistance: IP65
LED:
Power consumption: 20W
Weight:2.5kg
Installation size: 115 by 115 by
M10
Overall size(mm): 198 by 198
by 205
LED:
Power consumption: 20W
Weight:2.5kg
Installation size: 115 by 115 by
M10
Overall size(mm): 198 by 198
by 205
Medium-intensity Type B; Light intensity: 2,000cd ±25%;flash rate: Flashing
mode (20-60times/minute) ; Operating voltage:AC110V to AC240V, 50HZ
or 60 HZ; without GPS
mode (20-60times/minute) ; Operating voltage:AC110V to AC240V, 50HZ
or 60 HZ; without GPS

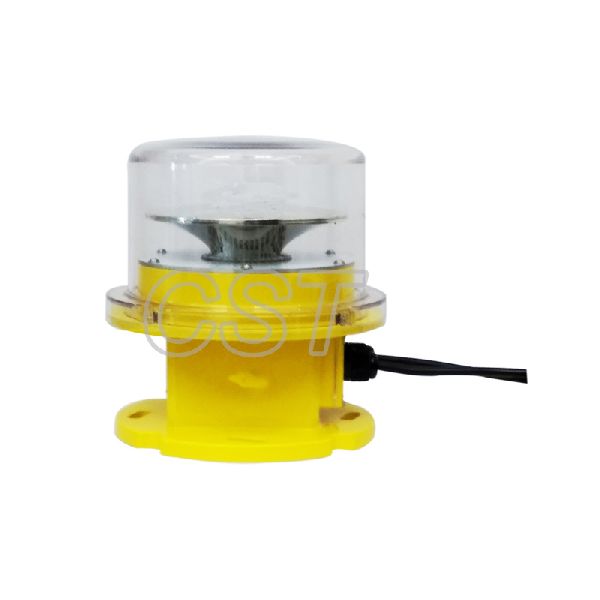

CS-864/C
Water Resistance: IP65
LED:
Power consumption: 30W
Weight:2kg
Installation size: φ115 by M10
Overall size(mm): 198 by 198
by 205
LED:
Power consumption: 30W
Weight:2kg
Installation size: φ115 by M10
Overall size(mm): 198 by 198
by 205
Medium-intensity Type C; Light intensity: 2,000cd ±25%;Flash rate: Steadyburning
mode ;Operating voltage: AC220V (option voltage,eg. AC120V,
AC110V, DC48V); without GPS
mode ;Operating voltage: AC220V (option voltage,eg. AC120V,
AC110V, DC48V); without GPS

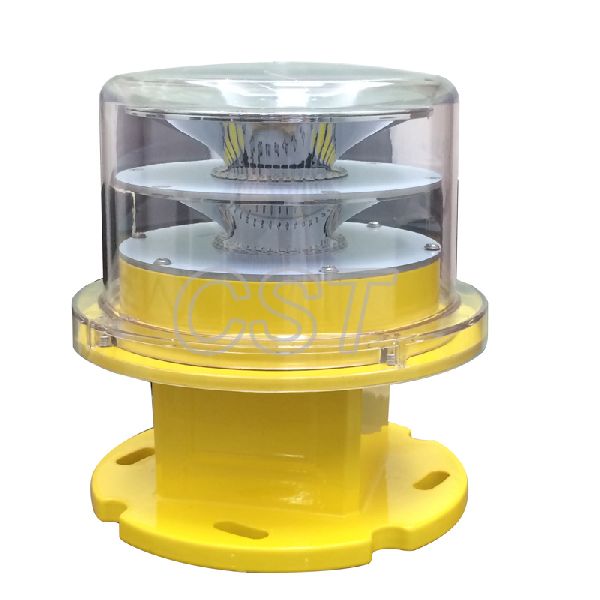

CS-864/D
Power consumption: 20W
Overall size(mm): 198 by 198
by 205
Installation size(mm): 115 by
115 by M10
Vertical degree: 3°
Horizontal degree: 360°
Material:
-Housing: PC
-Base: die casting aluminum
Weight: 3Kg
Emitting color: Aviation red
Ambient temperature: -40℃
~+60℃
Wind load: 80m/s
Overall size(mm): 198 by 198
by 205
Installation size(mm): 115 by
115 by M10
Vertical degree: 3°
Horizontal degree: 360°
Material:
-Housing: PC
-Base: die casting aluminum
Weight: 3Kg
Emitting color: Aviation red
Ambient temperature: -40℃
~+60℃
Wind load: 80m/s
Standard: ICAO (Aerodromes Annex 14) Medium-intensity Type B
3.Light intensity: 2,000cd ±25%
Flash rate: Flashing mode (20 to 60 times/minute)
Working way of two lights: Main (Duty)-standby way or Two light working
at the same time.
Light source: LED
Service life of LED: ≥100,000hours
Operating voltage: AC220V (option voltage,eg. AC120V, AC110V, DC48V)
Emitting color: Aviation red
Ambient temperature: -40℃~+60℃
Wind load: 80m/s
3.Light intensity: 2,000cd ±25%
Flash rate: Flashing mode (20 to 60 times/minute)
Working way of two lights: Main (Duty)-standby way or Two light working
at the same time.
Light source: LED
Service life of LED: ≥100,000hours
Operating voltage: AC220V (option voltage,eg. AC120V, AC110V, DC48V)
Emitting color: Aviation red
Ambient temperature: -40℃~+60℃
Wind load: 80m/s
