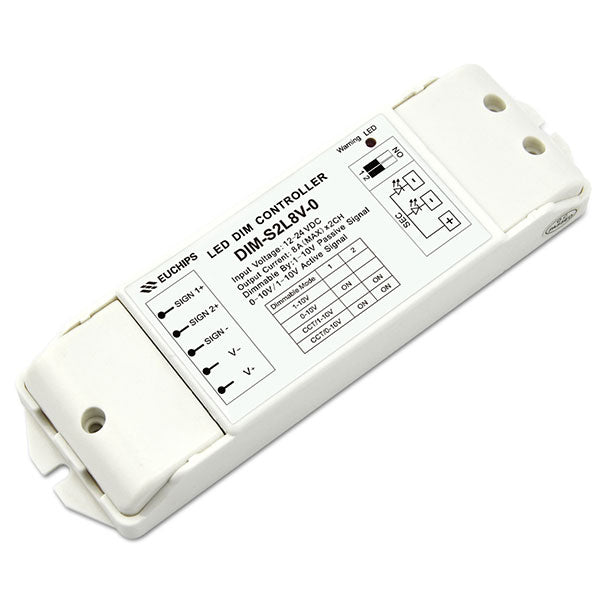

Euchips 12-24VDC 0-10V analog constant voltage led dimmer DIM-S2L8V-0

Euchips 12-24VDC 0-10V analog constant voltage led dimmer DIM-S2L8V-0

DIM-S2L8V-0

₱3,652.00 PHP
₱3,916.00 PHP ₱3,652.00 PHP
Sale Sold out
Shipping calculated at checkout.
Request For Quote

Technical Details

Datasheet for DIM-S2L8V-0


Feature

1. Support 3-in-1 dimming function(0-10V /1-10V active signal, Adjustable resistance, PWM)

2. Support dimming mode selection

3. Support the short circuit, over current protection and alarm function

4. Logarithmic dimming curve

5. Built-in CCT adjust mode, the user can adjust color temperature without changing the output power

6. For adjusting the brightness/ color temperature of LED strip

Technical Parameter



Product Name 12-24VDC 0-10V analog constant voltage led dimmer
Model DIM-S2L8V-0
Input voltage 12-24VDC
Output voltage 12-24VDC
Output current 8A*2CH(For brightness mode)
Totally 8A（For CCT mode）
Over current protection The red indicator light is on, recovers automatically after fault removed
Short circuit protection The red indicator light is on, recovers automatically after fault removed
Dimming mode 0-10V /1-10V active signal/Adjustable resistance/PWM
Current consumption of 0-10/1-10V signal 0.25mA
Dimension 167*51*23mm（L*W*H）
G.W. 100g
