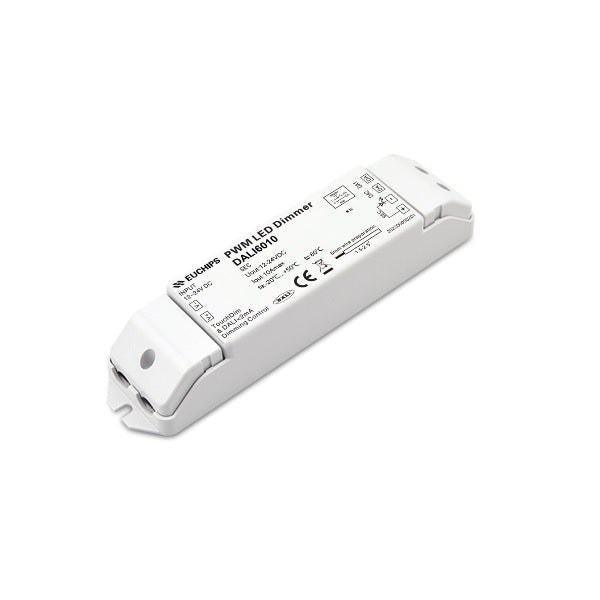

EUCHIPS 12-24VDC PWM LED Dimmer DALI6010
EUCHIPS 12-24VDC PWM LED Dimmer DALI6010
SKU:202200000201
Regular price
₱1,870.00 PHP
Regular price
₱2,024.00 PHP
Sale price
₱1,870.00 PHP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Technical Details:
Features
1. Single channel constant voltage output, 10A
2. Meet DALI protocol IEC 62386
3. Dimming range from 0.1~100%
4. PWM digital dimming, no alter LED color rendering index
5. Suitable for indoor LED lighting application
6. Protections: short circuit, over load, over temperature
Technical Parameter
| Model | DALI6010 | |
| Output | Voltage | 12-24VDC |
| Current | 10A | |
| Power | 120W(@12V)~240W(@24V) | |
| Channels | 1 | |
| Input | Voltage | 12-24VDC |
| Function | Dimming Mode | DALI, Touch DIM |
| Consumption Current | 2mA | |
| Protections | Short Circuit | Shut down the output, recovers automatically after fault removed |
| Over Lad | Shut down the output, recovers automatically after fault removed | |
| Over Temperature | Shut down the output, recovers automatically after fault removed | |
| Others | Dimension | 168*39*30mm(L*W*H) |
| G.W. | 124g | |
| Working Temp. | -20~50℃ | |
| Relative Humidity | 20~90%RH | |
