Euchips EUP 1HMC-1 Series 1-10V Dimming Constant Current Driver
Euchips EUP 1HMC-1 Series 1-10V Dimming Constant Current Driver
SKU:103100292101
Couldn't load pickup availability
Technical Details
Datasheet for EUP10A-1HMC-1-120
Datasheet for EUP10A-1HMC-1-350

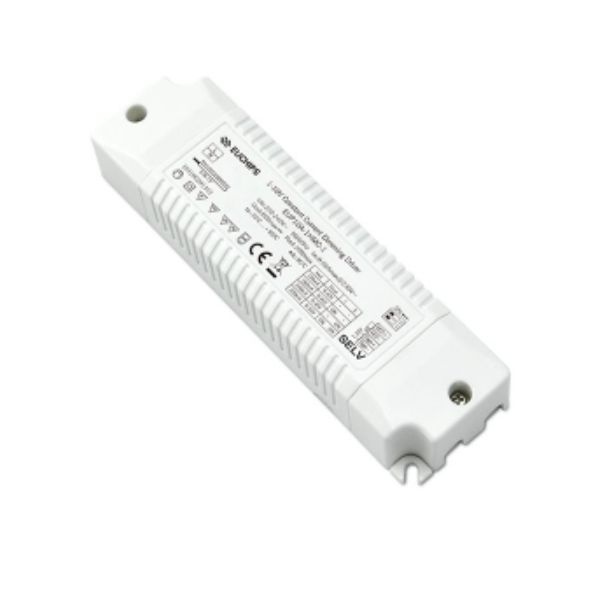

120/180/240/300mA 10W 1-10V Constant Current LED Dimming Driver EUP10A-1HMC-1
EUP10A-1HMC-1 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.
Product Features:
1. Single channel output, output current level selectable by DIP S.W.
2. Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance, PWM)
3. High input voltage of 220VAC ~ 240VAC
4. High efficiency up to 85%
5. Built-in active PFC function
6. 100% output when no dimming signal input, can be used as normal power supply
7. Dimming effect smooth, no flicker
8. Protections: Short circuit, over load, over temperature
9. Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameter
| Model | EUP10A-1HMC-1 | |
| Input | Efficiency | 85%@230VAC,Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@230VAC,Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| AC Current(max) | 0.06Amax@230VAC | |
| Inrush Current(max) | Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC | |
| Output | Current(mA)/Voltage (VDC)/Power(W) | 120mA/9-40VDC/4.8W 240mA/9-40VDC/9.6W 180mA/9-40VDC/7.2W 300mA/9-33VDC/9.9W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Standby Power | <1W | |
| No load output voltage | 50V Max | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
| Dimming Range | 0.1%-100% Dimming to off | |
| Protection | Short Circuit | after fault removed Close output ,the output current recovers automatically |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Over Temperature | Shut down the output, recovers automatically when temp. back to normal. | |
|
Safety& EMC |
Surge | L-N:500V |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Switch Cycle | >15,000 times | |
| Packing(weight) | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.75kg±5%/Carton; Carton Size: 374*314*166mm(L*W*H) | |
| Dimension | 150*43*29mm（L*W*H） | |

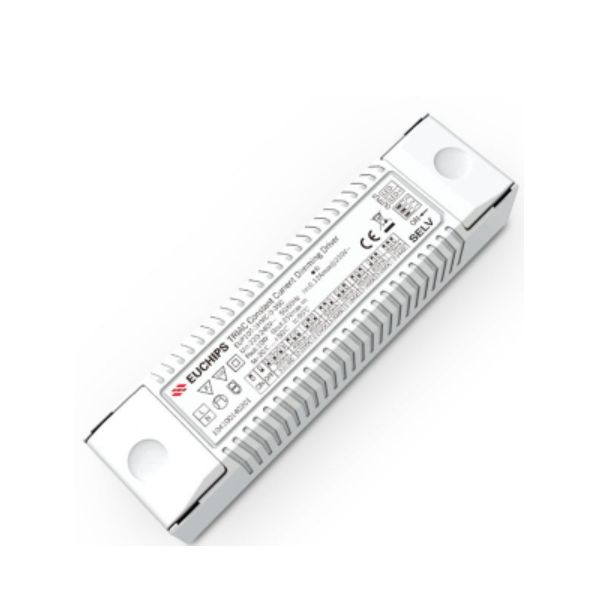

10W 350/400/450/500/550/600/650/700mA 1-10V Constant Current Driver EUP10A-1HMC-1-350
EUP10A-1HMC-1-350 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 0/1-10VDC active signal, PWM signal, or adjustable resistance to achieve the smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support 3-in-1 dimming mode(0/1-10V active signal, adjustable resistance, PWM)
3. High input voltage of 220VAC ~ 240VAC
4. High efficiency up to 80%
5. Built-in active PFC function
6. 100% output when no dimming signal input, can be used as normal power supply
7. Dimming effect smooth, no flicker
8. Protections: Short circuit, over load, over temperature
9. Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameters
| Model | EUP10A-1HMC-1-350 | |
| Input | Efficiency | 80%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | >0.5@230VAC,Full load | |
| AC Current(max) | 0.12Amax@230VAC | |
| Inrush Current(max) | Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC | |
| Output | Current/Voltage/Power | 350mA/2-21VDC/7.35W 400mA/2-21VDC/8.4W 450mA/2-21VDC/9.45W 500mA/2-20VDC/10W 550mA/2-18VDC/9.9W 600mA/2-16VDC/9.6W 650mA/2-15VDC/9.75W 700mA/2-14VDC/9.8W |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| No Load Output Voltage | 25VDC Max | |
| Function | Dimming Type | 0/1-10V active signal, adjustable resistance, PWM |
| Protection | Short Circuit | after fault removed Close output ,the output current recovers automatically |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Over Temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Others | Working Temp. | -20℃~50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 30,000h@tc:80℃ | |
| Warranty Condition | 3 years | |
| Warranty Condition | >15,000 times | |
| Packing(weight) | Net weight: 90g±5%/PCS; 100PCS/Carton; 7kg±5%/Carton; Carton Size: 515*235*140mm(L*W*H) | |
| Dimension | 110*30*22mm(L*W*H) | |
