Euchips EUP A 1HMC-1 Series 1-10V Dimming Constant Current Driver

Technical Details:

Datasheet for EUP12A-1HMC-1

Datasheet for EUP15A-1HMC-1

Datasheet for EUP20A-1HMC-1

Datasheet for EUP30A-1HMC-1

Datasheet for EUP40A-1HMC-1

Datasheet for EUP50A-1HMC-1

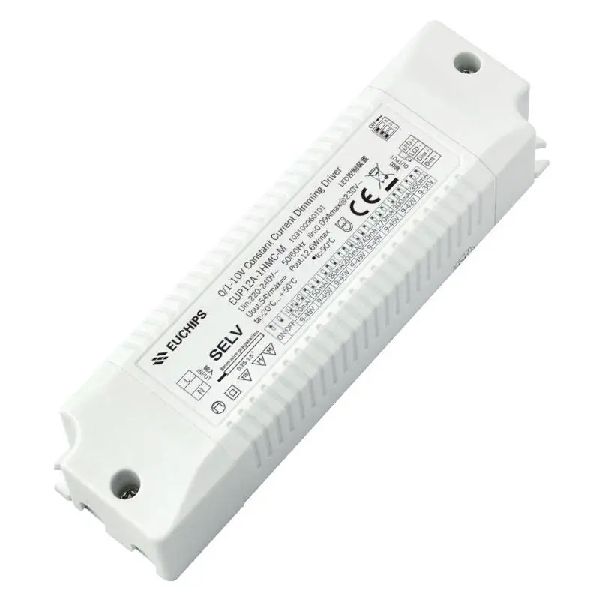

200/250/300/350mA 12W Constant Current 1-10V Driver EUP12A-1HMC-1

EUP12A-1HMC-1 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 1-10VDC active signal, PWM signal, or adjustable resistance to achieve the smooth dimming effect.

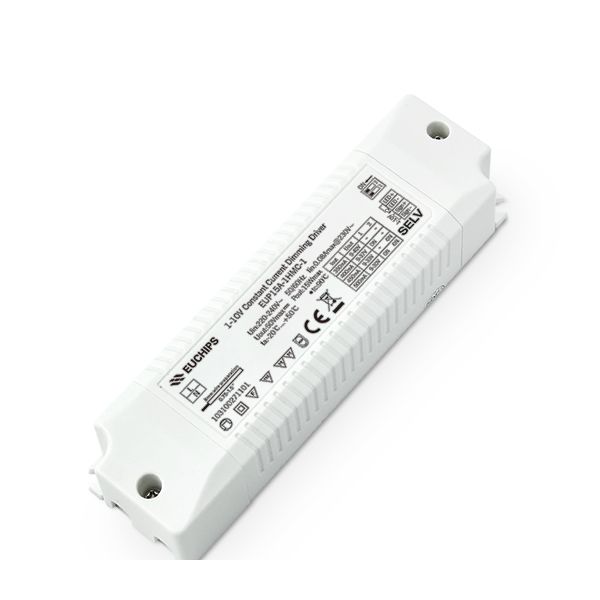

350/400/450/500mA 15W Constant Current 1-10V Driver EUP15A-1HMC-1

EUP15A-1HMC-1 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.

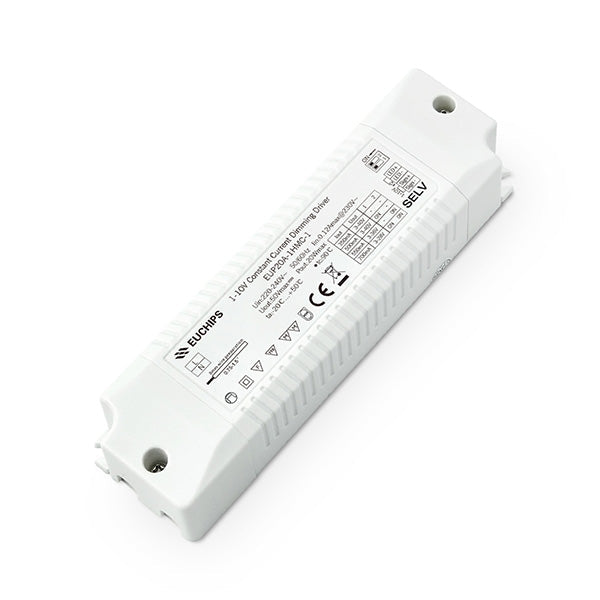

350/500/550/700mA 20W Constant Current 1-10V Driver EUP20A-1HMC-1

EUP20A-1HMC-1 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 1-10VDC active signal, PWM signal, or adjustable resistance to achieve the smooth dimming effect.

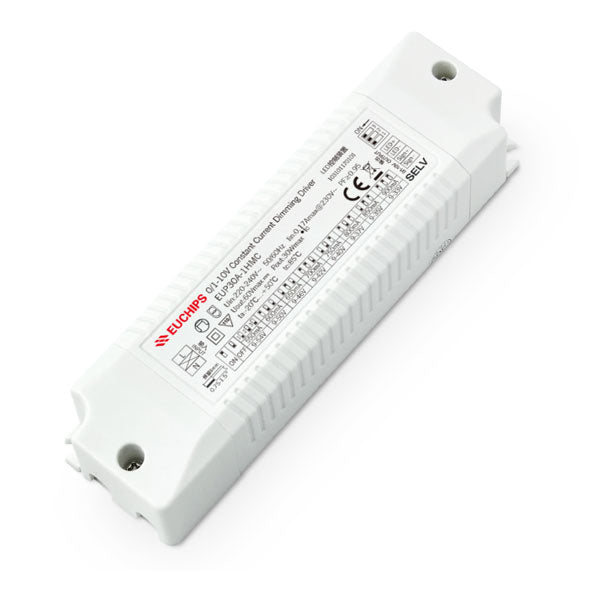

30W 550/600/650/700/750/800/850/900mA Constant Current 1-10V Driver EUP30A-1HMC-1

EUP30A-1HMC-1 is a constant current output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.

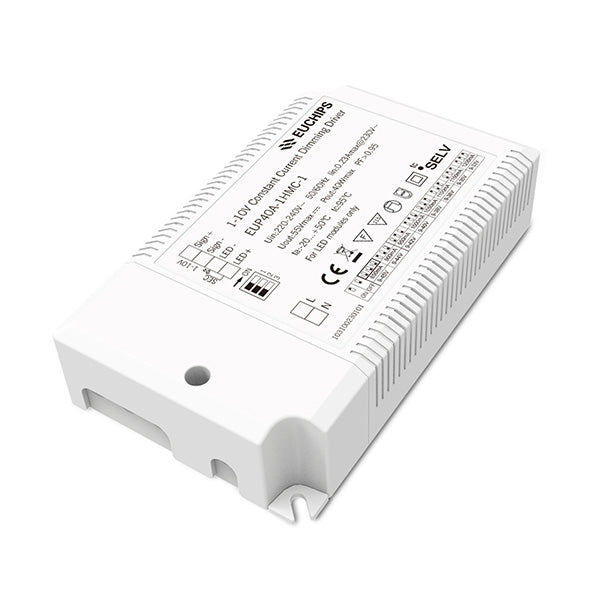

40W 850/900/950/1000/1050/1100/1150/1200mA Constant Current 1-10V Driver EUP40A-1HMC-1

EUP40A-1HMC-1 is a constant output mode LED driver. The output current can be easily set via DIP switch, and the driver can be adjusted by the external 1-10VDC active signal, PWM signal , or adjustable resistance to achieve the smooth dimming effect.

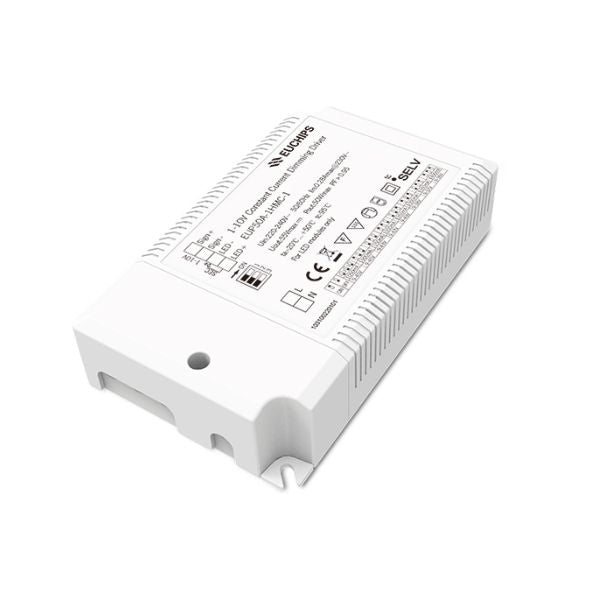

50W 1050-1400mA Constant Current 1-10v Dimmable Power Supply——EUP50A-1HMC-1Product Details

Overview
EUP50A-1HMC-1 is a constant current 1-10v dimming power supply that can provide 8 currents of 1050/1100/1150/1200/1250/1300/1350/1400mA . The output current can be easily set through the DIP switch, and can be smoothly dimmed by external 1-10V active signal, adjustable resistance, and PWM signal; when no external signal is connected, it can be used as a conventional power supply.
