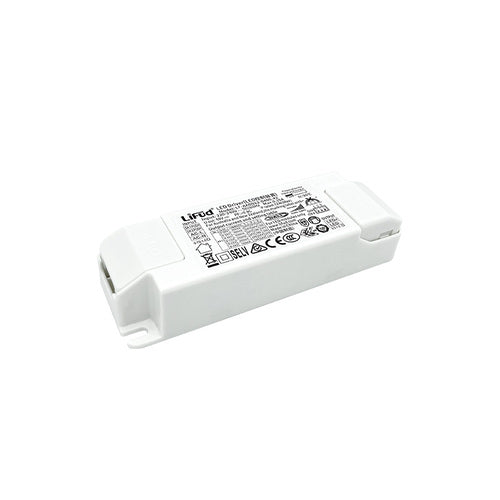

Lifud Constant Current LF-AAD020-0500-42 DALI-2 0.1% Dimming Depth Series Driver
Lifud Constant Current LF-AAD020-0500-42 DALI-2 0.1% Dimming Depth Series Driver
SKU:LF-AAD020-0500-42
Couldn't load pickup availability
Out of stock
Technical Details:
Datasheet for LF-AAD020-0500-42
Model
LF-AADxxx
Parameters
Operating voltage: 220-240Vac; 180-280Vdc
Output power: 1-40W
Operating voltage limit: 198-264Vac
Features
1. Supports DALI or PUSH dimming
2. The logarithmic dimming curve or the linear dimming curve is selectable
3. Adjustable output current via a DIP switch, in steps of 50mA
4. Flicker free
5. 0%-100%dimming range; 0.1% dimming depth
6. Suitable for Class II light fixtures
7. Good consistency of dimming, and the current tolerance of different pcs of LED driver is less than 3%
Warranty
5 years
Certifications
DALI-2, ENEC, CE, CB, RCM and CCC
Applications
Indoor office lighting, decorative lighting, commercial lighting, residential lighting
| Model | Output Power | Input Voltage | Output Voltage | Output Current | Efficiency (full load) |
PF (full load) | Dimension (L*W*H) |
| LF-AAD008-0350-42 | 8 W | 220-240 Vac | 9-42 Vdc | 100-350 mA | 76% (230Vac) | 0.90 (230Vac) | 142.1*29.5*25.5 mm |
| LF-AAD008-0700-12 | 8 W | 220-240 Vac | 2-12 Vdc | 350-700 mA | 76% (230Vac) | 0.90 (230Vac) | 142.1*29.5*25.5 mm |
| LF-AAD012-0400-42 | 12 W | 220-240 Vac | 9-42 Vdc | 150-400 mA | 82% (230Vac) | 0.90 (230Vac) | 121.9*39.9*25 mm |
| LF-AAD020-0500-42 | 20 W | 220-240 Vac | 9-42 Vdc | 250-500 mA | 85% (230Vac) | 0.95 (230Vac) | 121.9*39.9*25 mm |
| LF-AAD030-0750-42 | 30 W | 220-240 Vac | 9-42 Vdc | 400-750 mA | 85% (230Vac) | 0.95 (230Vac) | 141.5*46*27.5 mm |
| LF-AAD040-1050-42 | 40 W | 220-240 Vac | 9-42 Vdc | 550-1050 mA | 87% (230Vac) | 0.95 (230Vac) | 141.5*46*27.5 mm |
