Megaman PROV1 DL MILENA 19.5/25W R150 3000K/4000K SDIM ACT IP54 Integrated LED Downlight * 12pcs
Megaman PROV1 DL MILENA 19.5/25W R150 3000K/4000K SDIM ACT IP54 Integrated LED Downlight * 12pcs
SKU:4892657117363
Couldn't load pickup availability
175 in stock
Technical Details: One standard box = 12pieces
PRODUCT FEATURES

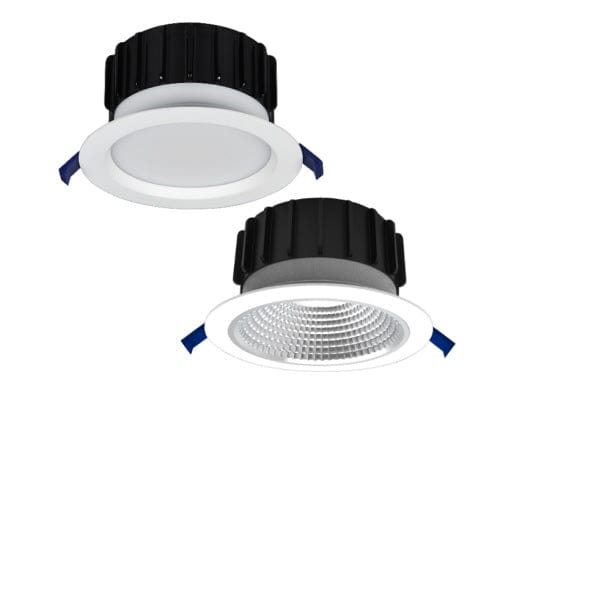

• Modular downlight unit consist of dual-lumen output & dual-CCT LED light engine and a reflector or diffuser bezel.
• The modular components design allows the assembly in-situ with tooless installation • The flexibility modular design enables a faster delivery period for customer requirements, which is an ideal solution for short lead time projects
• Offer high cut-off angle for better glare control in reflector version
• Tooless terminal block facilitate easy installation and maintenance, and through wiring possible
• Wide range of sizes allow retrofit for many conventional downlights in existing ceiling cut-outs
• Delivery of wide and uniform light distribution
• Flicker free ≤ 3% to avoid eye fatigue
• IP54 rated for damp location such as bathroom and kitchen
Lumen Output: 2500 lm
Lifespan: 50,000 h
| Electrical Data | |
| Voltage (V) | 220-240V |
| Frequency (Hz) | 50/60 |
| Input Current (mA) | 139/109 |
| Power Factor (λ) | >0.9 |
| Product Data | |
| Product Wattage (W) | 25/19.5 |
| Light Source | Integrated LED-3000/4000 |
| Beam Angle (°) | 100 |
| Colour Render Index (Ra) | > Ra80 |
| Protection Class | CL II |
| Colour Consistency (SDCM) | ≤4 |
| Energy Label | A+ |
| Operating Temperature | -30°C to +40°C |
| Switching Cycles (times) | 100,000 |
| Weight (g) | 550 |
| Application | Retails, Bathrooms, Hotels, Kitchens, Offices, Restaurants |
| Performance Data | |
| Total Luminous Flux (lm) | 2320/1860 @3000K 2500/2000 @4000K |
| Luminous Flux (lm) | 2320/1860 @3000K 2500/2000 @4000K |
| Luminous Efficacy (lm/W) | 93/95@3000K 100/103@4000K |
| IP Rating | IP20/IP54 |
| Product Dimensions | |
| Diameter (mm) | 172 |
| Height (mm) | 87 |
