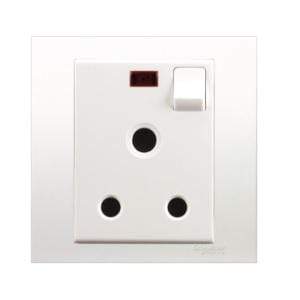

Schneider 13A 250V 1Gang Switched Socket

Schneider 13A 250V 1Gang Switched Socket

SKU:KB15_AS

₱387.00 PHP

~~₱430.00 PHP~~ ₱387.00 PHP

Sale Sold out

Shipping calculated at checkout.

Quantity

Request For Quote

**13A 250V 1Gang Switched Socket,Aluminium Silver (KB15_AS)**

**13A 250V 1 Gang Switched socket,Aluminium silver (KB15_AS_G2)**

**13A 250V 1Gang Switched Socket,White (KB15_WE)**

**13A 250V 1Gang Switched Socket,White(KB15_WE_G2)**

**13A 250V 1Gang Switched Socket with Neon,White (KB15N_WE)**

**13A 250V 1 Gang Switched Socket with Neon white(KB15N_WE_G2)**

**13A 250V 1 Gang Large Dolly Switched Socket(KB15L)(White)**

**13A 250V 1 Gang Large Dolly Switched Socket white(KB15L_WE_G2)**

**13A 250V 1 Gang Large Dolly Switched Socket with Neon(KB15LN_WE)**

**15A 250V 1Gang Switched Socket, Aluminium silver (KB15_15_AS)**

**15A 250V 1Gang Switched Socket,White (KB15_15_WE)**

**15A 250V 1 Gang Switched Socket,White (KB15_15_WE_G2)**

**15A 250V 1 Gang Switched Socket with Neon white (KB15_15N_WE_G2)**

Main
range	Vivace
product or component type	Socket-outlet with switch
device short name	KB15
device application	Power supply Control
device presentation	Complete mechanism

Complementary
outlet poles configuration	2P + E
number of gangs	1 gang
Colour tint	Aluminium silver
material	Polycarbonate: grid plate Polycarbonate: surround Polycarbonate: base
projecting depth	8 mm
device mounting	Flush
mounting support	Wall mounted
fixing mode	By screw M3.5
fixing center	60.3 mm
embedding depth	35 mm
rated current	13 A at 250 V AC, resistive 13 A at 250 V AC, inductive
network frequency	50 Hz
contacts material	Brass and phosphor bronze
connections - terminals	Pillar terminal
terminal identifier	L Earth N
tightening torque	0.4 N.m
clamping connection capacity	<= 1.5 mm²
width	86 mm
height	86 mm

Environment
standards	BS 546
ambient air temperature for operation	-5…40 °C
relative humidity	0…95 %
environmental characteristic	Indoor use

Offer Sustainability
EU RoHS Directive	Compliant EU RoHS Declaration
Toxic heavy metal free	Yes
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure	Product Environmental Profile
