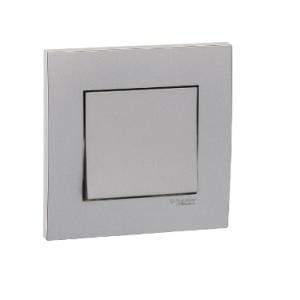

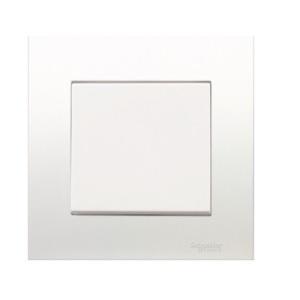

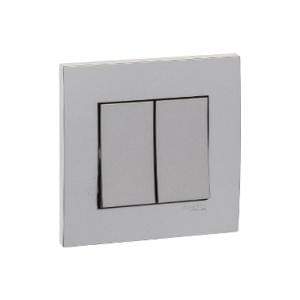

Schneider 16AX 250V Vivace Switch
Schneider 16AX 250V Vivace Switch
SKU:KB31_1_AS
Regular price
₱731.00 PHP
Regular price
₱817.00 PHP
Sale price
₱731.00 PHP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| switch function |
1-way
|
|
|---|---|---|
| actuator |
Rocker
|
|
| number of gangs |
1 gang
|
|
| colour tint |
Aluminium silver
|
|
| material |
Polycarbonate: grid plate
Polycarbonate: surround Polycarbonate: base |
|
| projecting depth |
8 mm
|
|
| device mounting |
Flush
|
|
| mounting support |
Wall mounted
|
|
| fixing mode |
By screw M3.5
|
|
| fixing center |
60.3 mm
|
|
| embedding depth |
35 mm
|
|
| rated current |
16 AX at 250 V AC, inductive
16 AX at 250 V AC, fluorescent |
|
| [Ue] rated operational voltage |
250 V AC
|
|
| network frequency |
50 Hz
|
|
| contacts material |
Brass and phosphor bronze
|
|
| connections - terminals |
pillar terminal
|
|
| terminal identifier |
L1
L2 COM |
|
| tightening torque |
0.4 N.m
|
|
| clamping connection capacity |
2.5 mm²
|
|
| width |
87 mm
|
|
| height |
87 mm
|
| standards |
SS 227
MS IEC 60669-1 IEC 60669-1 |
|
|---|---|---|
| ambient air temperature for operation |
-5…40 °C
|
|
| relative humidity |
0…95 %
|
|
| environmental characteristic |
Indoor use
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure |
