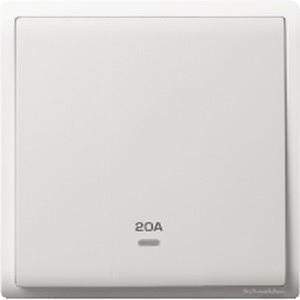

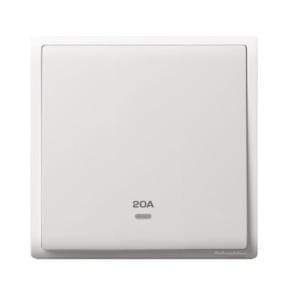

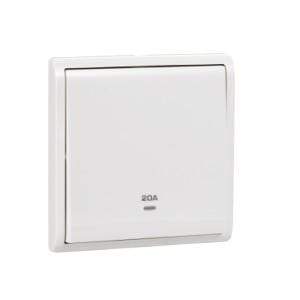

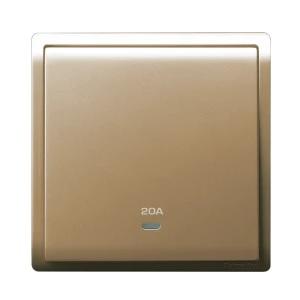

Schneider 20A 250V 1Gang Double Pole Switched with Neon Lamp
Schneider 20A 250V 1Gang Double Pole Switched with Neon Lamp
SKU:E8231D20N_WG
Regular price
₱1,720.00 PHP
Regular price
₱1,849.00 PHP
Sale price
₱1,720.00 PHP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| device mounting |
Surface
Flush |
|
|---|---|---|
| wiring device mounting |
Flush
Surface |
|
| rated current |
20 A at 250 V AC 50 Hz
|
|
| local signalling |
Neon
|
|
| number of gangs |
1 gang
|
|
| material |
Polycarbonate: surround
Polycarbonate: grid plate |
|
| connections - terminals |
Pillar terminals
|
|
| clamping connection capacity |
3 x 2.5 mm² for solid cable(s)
1 x 6 mm² for stranded cable(s) |
|
| embedding depth |
23 mm
|
|
| width |
87 mm
|
|
| height |
87 mm
|
|
| depth |
32.2 mm
|
| ambient air temperature for operation |
-5…40 °C
|
|
|---|---|---|
| relative humidity |
0…95 %
|
|
| standards |
SS 227-1
IEC 60669-1 MS IEC 60669-1 BS EN 60669-1 GB 16915.1 |
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| Circularity Profile |
No need of specific recycling operations
|
