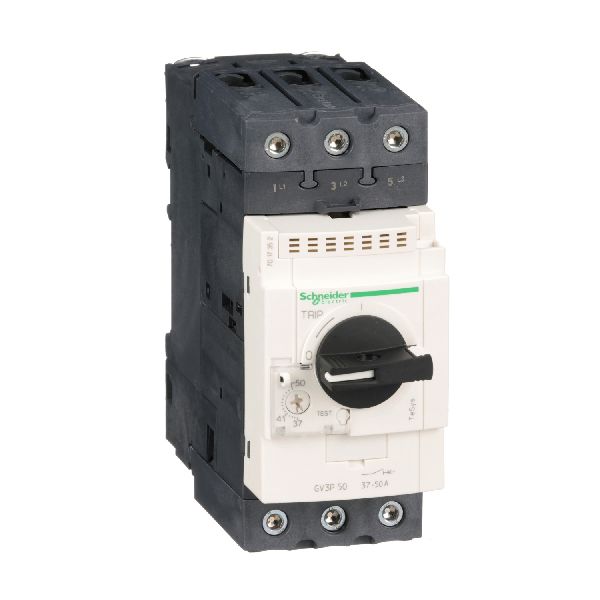

SCHNEIDER Motor, TeSys GV3, 3P, 37-50 A, Thermal Magnetic, EverLink Circuit Breaker
SCHNEIDER Motor, TeSys GV3, 3P, 37-50 A, Thermal Magnetic, EverLink Circuit Breaker
SKU:GV3P50
Regular price
₱13,275.00 PHP
Regular price
₱14,469.75 PHP
Sale price
₱13,275.00 PHP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Technical Details:
| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys GV3
|
|
| device short name |
GV3P
|
|
| device application |
Motor
|
|
| trip unit technology |
Thermal-magnetic
|
| poles description |
3P
|
|
|---|---|---|
| network type |
AC
|
|
| utilisation category |
AC-3 conforming to IEC 60947-4-1
Category A conforming to IEC 60947-2 |
|
| network frequency |
50/60 Hz conforming to IEC 60947-4-1
|
|
| fixing mode |
35 mm symmetrical DIN rail: clipped
Panel: screwed (with 3 x M4 screws) |
|
| operating position |
Any position
|
|
| motor power kW |
22 kW at 400/415 V AC 50/60 Hz
30 kW at 500 V AC 50/60 Hz 45 kW at 690 V AC 50/60 Hz |
|
| breaking capacity |
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| [Ics] rated service short-circuit breaking capacity |
100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| control type |
Rotary knob
|
|
| [In] rated current |
50 A
|
|
| thermal protection adjustment range |
37…50 A
|
|
| magnetic tripping current |
700 A
|
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| [Ui] rated insulation voltage |
690 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| [Ith] conventional free air thermal current |
50 A conforming to IEC 60947-4-1
|
|
| [Uimp] rated impulse withstand voltage |
IEC 60947-2 6 kV
|
|
| power dissipation per pole |
8 W
|
|
| mechanical durability |
50000 cycles
|
|
| electrical durability |
50000 cycles for AC-3 at 440 V In
|
|
| maximum operating rate |
25 cyc/h
|
|
| rated duty |
Continuous conforming to IEC 60947-4-1
|
|
| tightening torque |
5 N.m on EverLink BTR screw connectors for cable 25 mm²
8 N.m on EverLink BTR screw connectors for cable 35 mm² |
|
| suitability for isolation |
Yes conforming to IEC 60947-1
|
|
| phase failure sensitivity |
Yes conforming to IEC 60947-4-1
|
|
| height |
132 mm
|
|
| width |
55 mm
|
|
| depth |
136 mm
|
|
| net weight |
0.96 kg
|
| standards |
EN/IEC 60947-2
EN/IEC 60947-4-1 CSA C22.2 No 60947-4-1 UL 60947-4-1 |
|
|---|---|---|
| product certifications |
IECEE CB Scheme
UL CSA CCC EAC ATEX BV LROS (Lloyds register of shipping) DNV-GL ABS |
|
| protective treatment |
TH
|
|
| IP degree of protection |
IP20 conforming to IEC 60529
|
|
| IK degree of protection |
IK09
|
|
| ambient air temperature for operation |
-20…60 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
|
| fire resistance |
960 °C conforming to IEC 60695-2-1
|
|
| operating altitude |
3000 m
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.008 kg
|
|
| Package 1 Height |
6.5 cm
|
|
| Package 1 width |
14.5 cm
|
|
| Package 1 Length |
16 cm
|
|
| Unit Type of Package 2 |
P06
|
|
| Number of Units in Package 2 |
120
|
|
| Package 2 Weight |
133.96 kg
|
|
| Package 2 Height |
75 cm
|
|
| Package 2 width |
80 cm
|
|
| Package 2 Length |
60 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| WEEE |
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
|
| Warranty |
18 months
|
|---|
