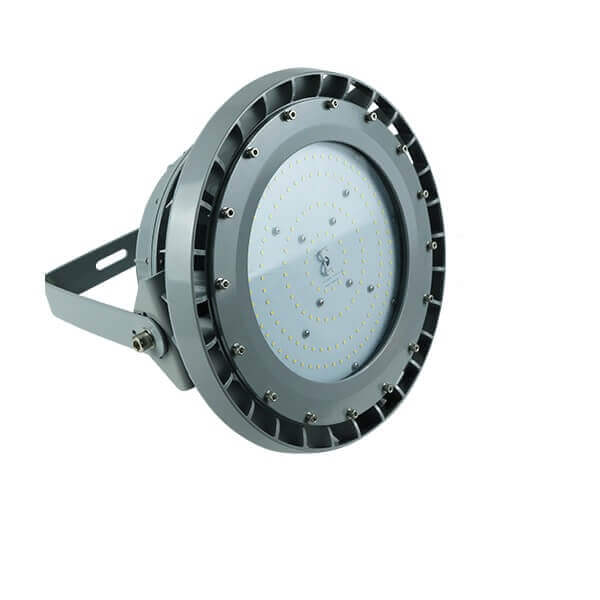

VENAS C Series LED Explosion Proof Flood Light 5000K
VENAS C Series LED Explosion Proof Flood Light 5000K
SKU:EX40WC2XYZA40100277V
Lead time 2-3 weeks.
Technical Details:
Upon Request 2200K,3000K,4000K,6000K and 7000K available.
ATEX/IECEx: Zone 1,Zone 2; Zone 21,Zone 22;
** Mounting Bracket included**
Standard Materials:
* Housing: Copper-free aluminum
* Lens: Tempered glass
* Hardware: Stainless steel Mounting
* Bracket: Stainless steel
Key Features:
* Dimmable and battery backup function is available
* High-quality SMT LED and Meanwell driver.
* Heavy-duty and high impact resistance.
* Replaceable LED board and drivers.
* Integrated junction box for driver.
* Marine rating powder coated finish treatment.
* Various installation ways for different applications.
* Glass lens or polycarbonate lens for making different beam angles.
Additional Features:
* Emergency battery backup is available.
* 5-year warranty
* Working Temperature: -40°C to 60°C (-40°F to 140°F); ATEX & IECEx (IC solution): -40°C to 80°C (-40°F to 176°F)
Product Category | Product code | Wattage | Beam Angle (Degree) | Size(inch) | Input Voltage | Lumens |
C Series | EX-40W C2XYZA | 40W | 40°,60°,90°,120° | 14"x10.4x26.9" | AC100-277V | 5600 |
EX-60W C2XYZA | 60W | 40°,60°,90°,120° | 14"x10.4x26.9" | AC100-277V | 8400 | |
EX-80W C2XYZA | 80W | 40°,60°,90°,120° | 14"x10.4x26.9" | AC100-277V | 11200 | |
EX-100W CXYZA | 100W | 40°,60°,90°,120° | 16"x13.4x26.9" | AC100-277V | 14000 | |
EX-150W CXYZA | 150W | 40°,60°,90°,120° | 16"x13.4x26.9" | AC100-277V | 21000 | |
EX-200W C3XYZA | 200W | 40°,60°,90°,120° | 17"x13.4x26.9" | AC100-277V | 28000 | |
EX-250W C3XYZA | 250W | 40°,60°,90°,120° | 17"x13.4x26.9" | AC100-277V | 35000 | |
EX-280W C3XYZA | 280W | 40°,60°,90°,120° | 17"x13.4x26.9" | AC100-277V | 39200 | |
EX-60W C2XYZA | 60W | 40°,60°,90°,120° | 14"x10.4x26.9" | AC200-480V | 8400 | |
EX-80W C2XYZA | 80W | 40°,60°,90°,120° | 14"x10.4x26.9" | AC200-480V | 11200 | |
EX-100W CXYZA | 100W | 40°,60°,90°,120° | 16"x13.4x26.9" | AC200-480V | 14000 | |
EX-150W CXYZA | 150W | 40°,60°,90°,120° | 16"x13.4x26.9" | AC200-480V | 21000 | |
EX-200W C3XYZA | 200W | 40°,60°,90°,120° | 17"x13.4x26.9" | AC200-480V | 28000 | |
EX-250W C3XYZA | 250W | 40°,60°,90°,120° | 17"x13.4x26.9" | AC200-480V | 35000 | |
EX-280W C3XYZA | 280W | 40°,60°,90°,120° | 17"x13.4x26.9" | AC200-480V | 39200 |
