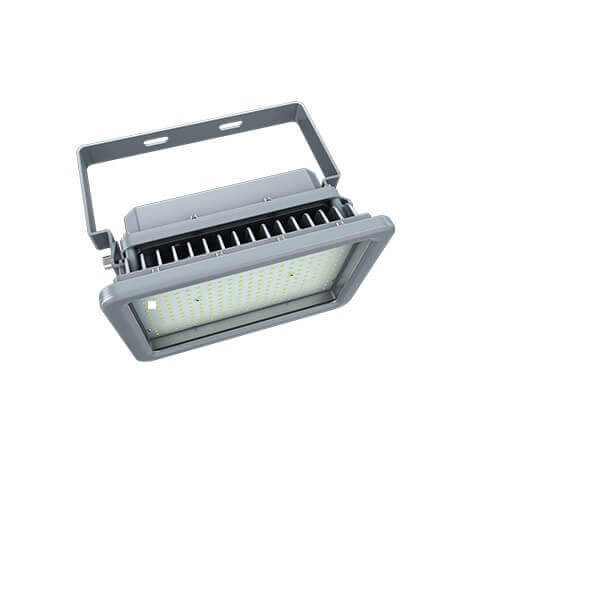

VENAS A Series LED Explosion Proof Flood Light 5000K
VENAS A Series LED Explosion Proof Flood Light 5000K
SKU:EX20WA2XYZA40
Couldn't load pickup availability
Lead time 2-3 weeks.
Technical Details:
Upon Request 2200K,3000K,4000K,6000K and 7000K available.
Atex/IECEx:Zone 1& 2/Zone 21& 22
** Mounting Bracket included**
Standard Materials:
* Housing: Copper-free aluminum
* Lens: Tempered glass
* Hardware: Stainless steel Mounting
* Bracket: Stainless steel
Key Features:
* Dimmable and battery backup function is available
* High-quality SMT LED and Meanwell driver.
* Heavy-duty and high impact resistance.
* Replaceable LED board and drivers.
* Integrated junction box for driver.
* Marine rating powder coated finish treatment.
* Various installation ways for different applications.
* Glass lens or polycarbonate lens for making different beam angles.
* 5-year warranty
* Low temperature applications to -40°C (-40°F) and high temperature up to 50°C (122°F).
| Product Category | Product code | Wattage | Beam Angle (Degree) | Size(inch) | Lumens |
| 4000K - 5000K | |||||
| A Series | EX-20W A2XYZA | 20W | 40°,60°,90°,120° | 10.2"x6.3"x8.1" | 2800 |
| EX-40W A2XYZA | 40W | 40°,60°,90°,120° | 10.2"x6.3"x8.1" | 5600 | |
| EX-60W A2XYZA | 60W | 40°,60°,90°,120° | 10.2"x6.3"x8.1" | 8400 | |
| EX-80W AXYZA | 80W | 40°,60°,90°,120° | 12.5"x9.45"x6.5" | 11200 | |
| EX-100W AXYZA | 100W | 40°,60°,90°,120° | 12.5"x9.45"x6.5" | 14000 | |
| EX-120W A3XYZA | 120W | 40°,60°,90°,120° | 14.9"x9.1"x10.6" | 16800 | |
| EX-150W A3XYZA | 150W | 40°,60°,90°,120° | 14.9"x9.1"x10.6" | 21000 | |
| EX-200W A3XYZA | 200W | 40°,60°,90°,120° | 14.9"x9.1"x10.6" | 28000 | |
| EX-250W A4XYZA | 250W | 40°,60°,90°,120° | 16.6"x11.8"x8.3" | 35000 | |
| EX300W A4XYZA | 300W | 40°,60°,90°,120° | 16.6"x11.8"x8.3" | 42000 | |
| EX-400W A4XYZA | 400W | 40°,60°,90°,120° | 16.6"x11.8"x8.3" | 56000 |
